Norsat International Inc.
Norsat 1000 Series XT1000F X-Band Single-Band LNB
Product Code:
XT1000F
Availability:
YES
Weight:
0.60 KGS
Width:
7.00
(cm)
Height:
5.90
(cm)
Depth:
13.70
(cm)
$2,000.00
Norsat's Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard X-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry's leading provider of high performance LNBs. LNB,X-PLL,7.25-7.75GHZ,LOF:6.30GHZ,EXTREF,NF:0.7DB,F-CONN
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | X-Band |
| LO Type | External |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 0.7 dB |
| Input Frequency - Band 1 | X-Band: 7.25 - 7.75 GHz |
| Output Frequency 1 | L-Band: 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 6.30 GHz |
| Phase Noise @ 1KHz offset | -75 dBc/Hz |
| Phase Noise @ 10KHz offset | -85 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 56 dBm |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 230 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR112 |
| RF Output Connector | F-75 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |

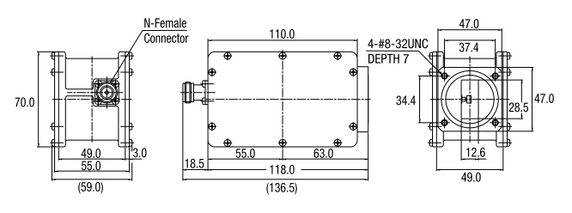

| Dimensions (L x W x H) | 137 x 70 x 59 mm |
| Weight | 600 g |
5 customers are viewing this product
Details
Norsat's Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard X-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry's leading provider of high performance LNBs. LNB,X-PLL,7.25-7.75GHZ,LOF:6.30GHZ,EXTREF,NF:0.7DB,F-CONN
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | X-Band |
| LO Type | External |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 0.7 dB |
| Input Frequency - Band 1 | X-Band: 7.25 - 7.75 GHz |
| Output Frequency 1 | L-Band: 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 6.30 GHz |
| Phase Noise @ 1KHz offset | -75 dBc/Hz |
| Phase Noise @ 10KHz offset | -85 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 56 dBm |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 230 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR112 |
| RF Output Connector | F-75 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 137 x 70 x 59 mm |
| Weight | 600 g |
