Norsat International Inc.

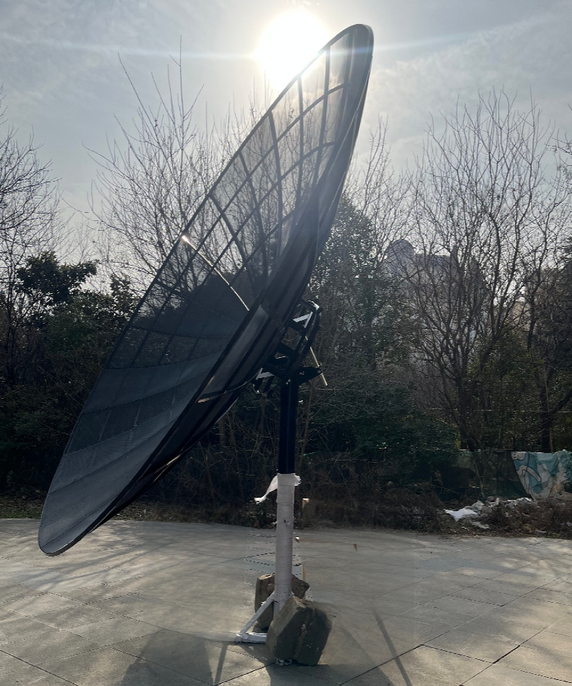

Norsat WX-100316 4.5m C-Band Grid Antenna - Rx Only
Product Code:
WX-100316
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 4.5m |
| Band | C-Band |
| Reflector Material | Aluminum Mesh |
| ANTENNA SPECIFICATIONS | |
| Antenna Drive Mode | manual structure antenna |
| Antenna Type | Prime Focus |
| Number Of Ports | 1-port |
| Polarization | Linear |
| RF SPECIFICATIONS | |
| Frequency | 4.4 - 5.0 GHz |
| Gain | 44 dBi typ. at 4.4 GHz |
| INTERFACE SPECIFICATIONS | |
| Feed Interface | WR-187 |
| Tx Rx Configuration | Rx Only |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% Relative |
| Seismic Horizontal Survival | 0.3 g |
| Seismic Vertical Survival | 0.15 g |
| Temperature Operational | -40°C to +60°C |
| Windspeed Operational | 79 km/h gusting to 126 km/h |
| PHYSICAL SPECIFICATIONS | |
| Motion Range AZ | 0° - 360° (Continous) |
| Motion Range EL | 0° - 90° (Continous) |
| Motion Range POL | ±90° (Continous) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517700000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 4.5m |
| Band | C-Band |
| Reflector Material | Aluminum Mesh |
| ANTENNA SPECIFICATIONS | |
| Antenna Drive Mode | manual structure antenna |
| Antenna Type | Prime Focus |
| Number Of Ports | 1-port |
| Polarization | Linear |
| RF SPECIFICATIONS | |
| Frequency | 4.4 - 5.0 GHz |
| Gain | 44 dBi typ. at 4.4 GHz |
| INTERFACE SPECIFICATIONS | |
| Feed Interface | WR-187 |
| Tx Rx Configuration | Rx Only |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% Relative |
| Seismic Horizontal Survival | 0.3 g |
| Seismic Vertical Survival | 0.15 g |
| Temperature Operational | -40°C to +60°C |
| Windspeed Operational | 79 km/h gusting to 126 km/h |
| PHYSICAL SPECIFICATIONS | |
| Motion Range AZ | 0° - 360° (Continous) |
| Motion Range EL | 0° - 90° (Continous) |
| Motion Range POL | ±90° (Continous) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517700000 |
| Warranty | 1 year |
