Norsat International Inc.

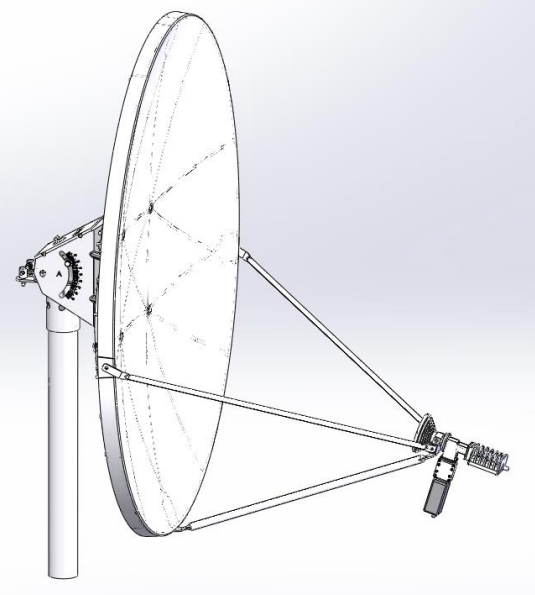

Norsat WX-100304 1.2m Ku-Band Fixed Antenna Rx Only
Product Code:
WX-100304
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Reflector Diameter | 1.2 m |
| Reflector Material | Glass Fiber Reinforced Polyester SMC |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Prime Focus, Offset, 0.6 f/D |
| Azimuth Range | 360° Continous, ±10° Fine Adjustment |
| Cross Polarization Isolation | 30 dB on Axis |
| Elevation Range | 10° to 90° Continous Fine Adjustment |
| Noise Temperature Elevation 20° | 45°K |
| Noise Temperature Elevation 30° | 40°K |
| Polarization | Linear, Orthogonal |
| Positioner | Elevation over Azimuth |
| RF SPECIFICATIONS | |
| Rx Beamwidth | Receive = 1.5° |
| Rx Feed Insertion Loss | 0.4 dB max. |
| Rx Frequency | 10.70 - 12.75 GHz |
| Rx Gain | 41.5 dBi ± 0.3 dBi |
| Rx VSWR | 1.5 : 1 max. |
| Sidelobe | Per ITU-R S.580-6 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Atmospheric Conditions | Salt, Pollutants, and Contaminants as Encountered in Coastal and Industrial Areas |
| Radial Ice Survival | 0.5 inches (13 mm) |
| Rainfall Operational | 0.5 inches/h (13 mm/h) |
| Rainfall Survival | 2 inches/h (51 mm/h) |
| Solar Radiation | 360 BTU/h/ft^2 (1135 W/m^2) |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -46°C to +71°C |
| Windspeed Operational | 72 km/h |
| Windspeed Survival | 200 km/h |
| PHYSICAL SPECIFICATIONS | |
| Mast Diameter | 2.5 SCH Pipe (2.88" OD) |
| Max RF Equipment Weight | 8 lbs (3.6 kg) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
