Norsat International Inc.

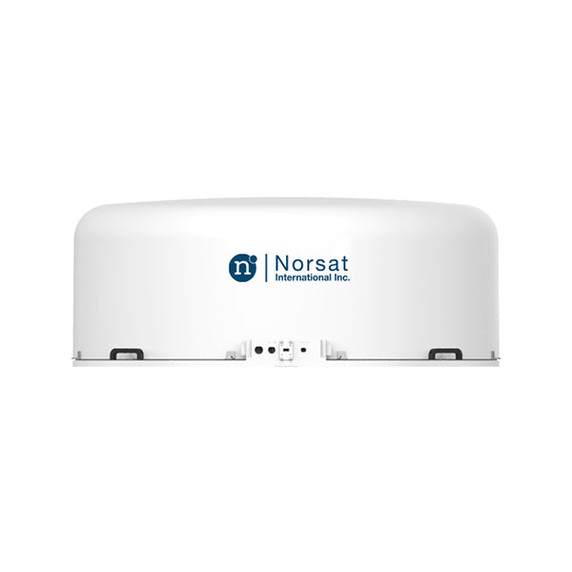

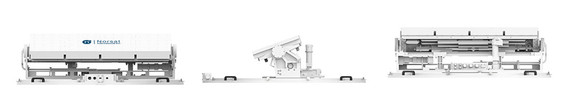

Norsat WOM090KUA WAYFARER 0.9m Ku-Band Communications-on-the-Move - Flat Panel
Product Code:

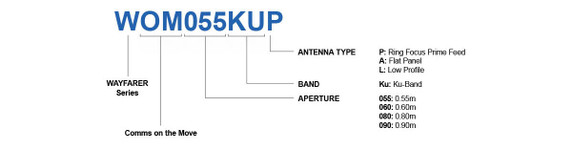

WOM090KUA
Condition:
New
Availability:
10 - 12 Weeks
Weight:
85.00 KGS
$112,750.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.9m |
| Antenna Category | On the Move |
| Band | Ku-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Flat Panel |
| Azimuth Acceleration | ≥ 200 °/s2 |
| Azimuth Velocity | ≤ 60 °/s |
| Blockage Recovery Time | ≤ 5 s（Blockage 20min） |
| Cross Polarization Isolation | ≥30 dB |
| Elevation Acceleration | ≥ 200 °/s2 |
| Elevation Veolcity | ≤ 60 °/s |
| Equivalent Aperture | 0.9m |
| Initial Auto Acquisition Time | ≤ 3min |
| Polarization | Linear |
| Polarization Velocity | ≤40 °/s |
| Sidelobe | AZ: ≤ -14dB, EL: ≤-11dB |
| RF SPECIFICATIONS | |
| Port Isolation Tx-Rx | 85 dB |
| Power Capacity | 100 W |
| Rx Frequency | 12.25 - 12.75 GHz |
| Rx Gain | 38.0+20lg(f/12.50) dBi |
| Rx Interface | N-50K |
| Tx Frequency | 14.00 - 14.50 GHz |
| Tx Gain | 39.0+20lg(f/14.25) dBi |
| Tx Interface | WR75 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220 VAC，50 Hz, ≤300W (excluding BUC) |
| INTERFACE SPECIFICATIONS | |
| Positioning Mode | GPS+BD |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0-95% |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -50 °C to +70°C |
| Windspeed Operational | 21m/s |
| Windspeed Survival | 35m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power supply, RF cable and Communication Cable |
| Default Cable Length | 10m |
| Product Weight | ≤ 85 kg (excluding BUC, packaging and accessories) |
| RMS | ≤ 0.5 dB（R.M.S） |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
| Warranty | 1 year |
