Norsat International Inc.

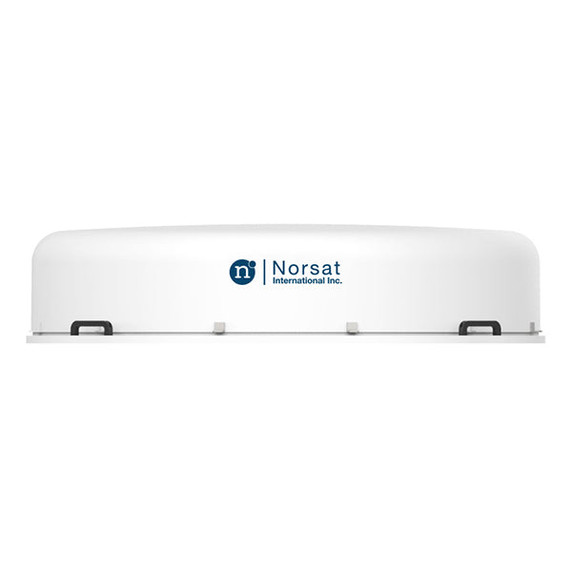

Norsat WOM060KUA WAYFARER 0.6m Ku-Band Communications-on-the-Move Antenna - Flat Panel
Product Code:
WOM060KUA
Condition:
New
Availability:
10 - 12 Weeks
Weight:
80.00 KGS
$104,500.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.6m |
| Antenna Category | On the Move |
| Band | Ku-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Flat Panel |
| Azimuth Acceleration | ≥ 200 °/s2 |
| Azimuth Angle | 360° unlimited |
| Azimuth Velocity | ≤ 60 °/s |
| Blockage Recovery Time | ≤ 5 s（Blockage 20min） |
| Cross Polarization Isolation | ≥30 dB |
| Elevation Acceleration | ≥ 200 °/s2 |
| Elevation Angle | 5° - 85° |
| Elevation Veolcity | ≤ 60 °/s |
| Initial Auto Acquisition Time | ≤ 3min |
| Polarization | Linear |
| Polarization Range | 360° Unlimited |
| Polarization Velocity | ≤40 °/s |
| Sidelobe | AZ ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | 85 dB |
| Port Isolation Tx-Rx | 40 dB |
| Power Capacity | 100 W |
| Rx Frequency | 10.70 - 12.75 GHz |
| Rx Gain | ≥ 35.3dBi+20lg(f/12.5GHz)dBi |
| Rx Interface | WR75 |
| Rx VSWR | ≤ 1.5：1 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | ≥ 36.3dBi+20lg(f/14.25GHz)dBi |
| Tx Interface | WR75 |
| Tx VSWR | ≤ 1.5：1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220 VAC, 50 Hz, ≤300W (excluding BUC) |
| INTERFACE SPECIFICATIONS | |
| Positioning Mode | GPS+BD |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% (20℃) |
| IP Rating | IP 65 |
| Temperature Operational | -25°C to +55°C (cabin equipment); -40°C to +65°C (Extravehicular equipment) |
| Temperature Storage | -40°C to +65°C |
| Windspeed Operational | ≤ 21m/s |
| Windspeed Survival | ≤ 35m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power supply, RF cable and Communication Cable |
| Default Cable Length | 10m |
| Product Weight | ≤ 80 kg (excluding BUC, LNB, packaging and accessories) |
| RMS | ≤ 0.5 dB（R.M.S） |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
| Warranty | 1 year |
