Norsat International Inc.

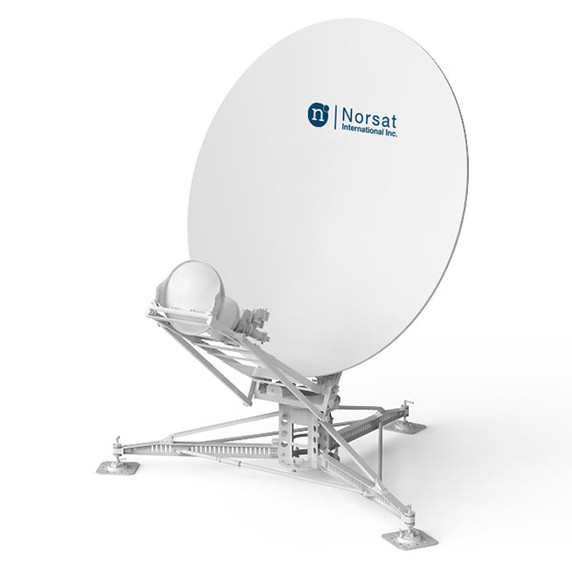

Norsat WFMT240D WAYFARER 2.4m C/X/Ku Triple-Band Manual Flyaway Antenna - Dual Offset
Product Code:
WFMT240D
Condition:
New
Availability:
10 - 12 Weeks
Weight:
220.00 KGS
$77,000.00
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Manual |
| Antenna Aperture | 2.4m |
| Antenna Category | Flyaway |
| Band | C-Band / X-Band / Ku-Band |
| Number Of Onboard Los | Triple-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Dual Offset |
| Cross Polarization Isolation | ≥30 dB |
| Motion Range AZ | ± 200° |
| Motion Range EL | 10° - 90° |
| Motion Range POL | ± 90° |
| Polarization | Linear |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | 85 dB |
| Port Isolation Tx-Rx | 40 dB |
| Power Capacity | 100 W |
| Rx Frequency | 10.70 - 12.75 GHz |
| Rx Gain | ≥ 47.1dBi+20lg(f/12.5GHz)dBi |
| Rx Interface | WR75 |
| Rx VSWR | ≤ 1.5：1 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | ≥ 48.5dBi+20lg(f/14.25GHz)dBi |
| Tx Interface | WR75 |
| Tx VSWR | ≤ 1.5：1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% (20℃) |
| IP Rating | IP65 |
| Temperature Operational | -40℃ - +60℃ |
| Temperature Storage | -50℃ - +70℃ |
| Windspeed Operational | ≤ 11m/s |
| Windspeed Survival | ≤ 18m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | 10m |
| Product Weight | ≤ 220 kg (excluding BUC, LNB, packaging and accessories) |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
| Warranty | 1 year |
5 customers are viewing this product
