Norsat International Inc.

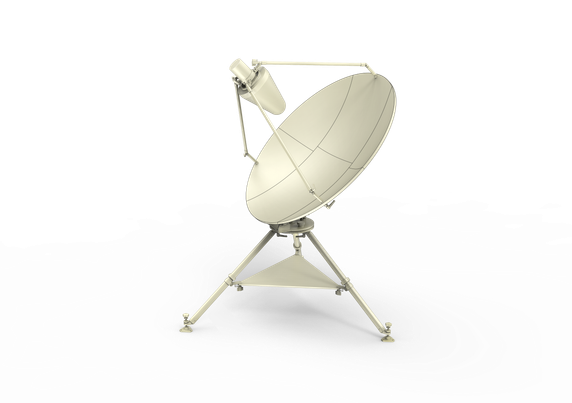

Norsat WFMQ120F WAYFARER 1.2m Multi-Band Manual Flyaway Antenna - Feed Forward
Product Code:
WFMQ120F
Condition:
New
Availability:
10 - 12 Weeks
Weight:
40.00 KGS
Width:
180.00
(cm)
Height:
160.00
(cm)
Depth:
180.00
(cm)
$31,625.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Manual Flyaway |
| Band | Ku-Band & Ka-Band & X-Band & C-Band |
| Number Of Onboard Los | Multi-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Feed Forward |
| Azimuth Angle | ±180° |
| Elevation Angle | 0° - 90° |
| Sidelobe | ≤ -14 dB |
| RF SPECIFICATIONS | |
| Power Capacity | ≤500 W |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95%（20°C） |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Number Of Cases | 1 |
| Packed By | wood crate and aluminium shipping case |
| Product Height | 1600 mm |
| Product Length | 1800 mm |
| Product Weight | 40 kg |
| Product Width | 1800 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Package Height Case 1 | 600 mm |
| Package Length Case 1 | 1000 mm |
| Package Weight Case 1 | 60 kg |
| Package Width Case 1 | 700 mm |
| Unit Package Dimensions | 1000*700*600 (mm) |
| Unit Package Weight | 60 kg |
| Warranty | 1 year |
