Norsat International Inc.

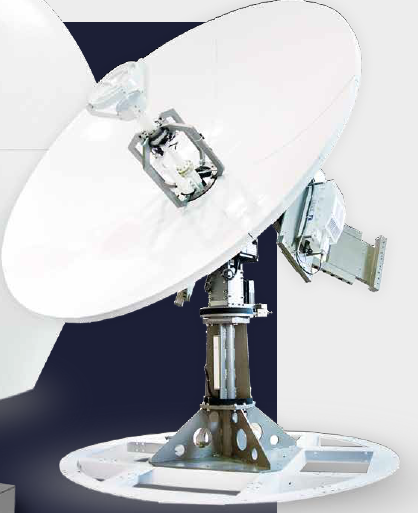

Norsat WFM240CD WAYFARER 2.4m C-Band Manual Flyaway Antenna - Dual Offset
Product Code:
WFM240CD
Condition:
New
Availability:
10 - 12 Weeks
Weight:
220.00 KGS
$82,500.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 2.4m |
| Antenna Category | Manual Flyaway |
| Band | C-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Dual Offset |
| Azimuth Angle | ± 200° |
| Cross Polarization Isolation | ≥30 dB |
| Elevation Angle | 10° - 90° |
| Polarization | Linear |
| Polarization Range | ± 90° |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | 85 dB |
| Port Isolation Tx-Rx | 40 dB |
| Power Capacity | 100 W |
| Rx Frequency | 3.625 - 4.20 GHz |
| Rx Gain | ≥ 37.3dBi+20lg(f/3.9GHz)dBi |
| Rx Interface | WR229 |
| Rx VSWR | ≤ 1.5：1 |
| Tx Frequency | 5.85 - 6.425 GHz |
| Tx Gain | ≥ 41.2dBi+20lg(f/6.3GHz)dBi |
| Tx Interface | WR137 |
| Tx VSWR | ≤ 1.5：1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% (20℃) |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 °C to +70°C |
| Windspeed Operational | ≤ 11m/s |
| Windspeed Survival | ≤ 18m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable Length | 10m |
| Product Weight | ≤ 220 kg (excluding BUC, LNB, packaging and accessories) |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
| Warranty | 1 year |
