Norsat International Inc.

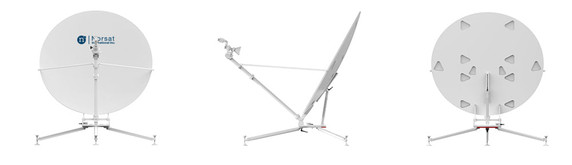

Norsat WFM120KAS WAYFARER 1.2m Ka-Band Manual Flyaway Antenna - Single Offset
Product Code:
WFM120KAS
Condition:
New
Availability:
10 - 12 Weeks
Weight:
25.00 KGS
$30,250.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Manual Flyaway |
| Band | Ka-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Single Offset |
| Axis Ratio | ≤ 1.5dB |
| Azimuth Angle | ± 180° |
| Elevation Angle | 0° - 90° |
| Polarization | Circular |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | 85 dB |
| Port Isolation Tx-Rx | 40 dB |
| Power Capacity | 100 W |
| Rx Frequency | 17.70 - 21.20 GHz |
| Rx Gain | ≥ 45.2dBi+20lg(f/20.4GHz)dBi |
| Rx Interface | WR42 |
| Rx VSWR | ≤ 1.3：1 |
| Tx Frequency | 27.50 - 31.00 GHz |
| Tx Gain | ≥ 48.5dBi+20lg(f/30GHz)dBi |
| Tx Interface | WR28 |
| Tx VSWR | ≤ 1.3：1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% (20℃) |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 °C to +70°C |
| Windspeed Operational | ≤ 11m/s |
| Windspeed Survival | ≤ 18m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable Length | 10m |
| Product Weight | ≤ 25 kg (excluding BUC, LNB, packaging and accessories) |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Manual Flyaway |
| Band | Ka-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Single Offset |
| Axis Ratio | ≤ 1.5dB |
| Azimuth Angle | ± 180° |
| Elevation Angle | 0° - 90° |
| Polarization | Circular |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | 85 dB |
| Port Isolation Tx-Rx | 40 dB |
| Power Capacity | 100 W |
| Rx Frequency | 17.70 - 21.20 GHz |
| Rx Gain | ≥ 45.2dBi+20lg(f/20.4GHz)dBi |
| Rx Interface | WR42 |
| Rx VSWR | ≤ 1.3：1 |
| Tx Frequency | 27.50 - 31.00 GHz |
| Tx Gain | ≥ 48.5dBi+20lg(f/30GHz)dBi |
| Tx Interface | WR28 |
| Tx VSWR | ≤ 1.3：1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% (20℃) |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 °C to +70°C |
| Windspeed Operational | ≤ 11m/s |
| Windspeed Survival | ≤ 18m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable Length | 10m |
| Product Weight | ≤ 25 kg (excluding BUC, LNB, packaging and accessories) |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
| Warranty | 1 year |
