Norsat International Inc.

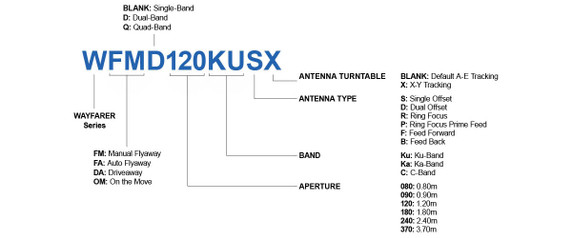

Norsat WFM120CF WAYFARER 1.2m C-Band Manual Flyaway Antenna - Feed Forward
Product Code:
WFM120CF
Condition:
New
Availability:
10 - 12 Weeks
Weight:
35.00 KGS
Width:
180.00
(cm)
Height:
160.00
(cm)
Depth:
180.00
(cm)
$17,875.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Manual Flyaway |
| Band | C-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Feed Forward |
| Azimuth Angle | ±180° |
| Cross Polarization Isolation | ≥30 dB |
| Elevation Angle | 0° - 90° |
| Polarization | Linear&Circular |
| Polarization Range | ±90° |
| Sidelobe | ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | ≥ 85 dB |
| Port Isolation Tx-Rx | ≥ 40 dB |
| Power Capacity | ≤500 W |
| Rx Frequency | 3.625 - 4.20 GHz |
| Rx Gain | 30.7+20lg(f/3.8) |
| Rx Interface | WR229 |
| Rx VSWR | ≤ 1.50 : 1 |
| Tx Frequency | 5.85 - 6.725 GHz |
| Tx Gain | 35.1 +20lg(f/6.3) |
| Tx Interface | WR137 |
| Tx VSWR | ≤ 1.50 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95%（20°C） |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55℃ to +70℃ |
| Windspeed Operational | 13m/s |
| Windspeed Survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Number Of Cases | 1 |
| Packed By | wood crate and aluminium shipping case |
| Product Height | 1600 mm |
| Product Length | 1800 mm |
| Product Weight | 35 kg |
| Product Width | 1800 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Package Height Case 1 | 500 mm |
| Package Length Case 1 | 880 mm |
| Package Weight Case 1 | 55 kg |
| Package Width Case 1 | 700 mm |
| Unit Package Dimensions | 880*700*500 (mm) |
| Unit Package Weight | 55 kg |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Manual Flyaway |
| Band | C-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Feed Forward |
| Azimuth Angle | ±180° |
| Cross Polarization Isolation | ≥30 dB |
| Elevation Angle | 0° - 90° |
| Polarization | Linear&Circular |
| Polarization Range | ±90° |
| Sidelobe | ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | ≥ 85 dB |
| Port Isolation Tx-Rx | ≥ 40 dB |
| Power Capacity | ≤500 W |
| Rx Frequency | 3.625 - 4.20 GHz |
| Rx Gain | 30.7+20lg(f/3.8) |
| Rx Interface | WR229 |
| Rx VSWR | ≤ 1.50 : 1 |
| Tx Frequency | 5.85 - 6.725 GHz |
| Tx Gain | 35.1 +20lg(f/6.3) |
| Tx Interface | WR137 |
| Tx VSWR | ≤ 1.50 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95%（20°C） |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55℃ to +70℃ |
| Windspeed Operational | 13m/s |
| Windspeed Survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Number Of Cases | 1 |
| Packed By | wood crate and aluminium shipping case |
| Product Height | 1600 mm |
| Product Length | 1800 mm |
| Product Weight | 35 kg |
| Product Width | 1800 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Package Height Case 1 | 500 mm |
| Package Length Case 1 | 880 mm |
| Package Weight Case 1 | 55 kg |
| Package Width Case 1 | 700 mm |
| Unit Package Dimensions | 880*700*500 (mm) |
| Unit Package Weight | 55 kg |
| Warranty | 1 year |
