Norsat International Inc.

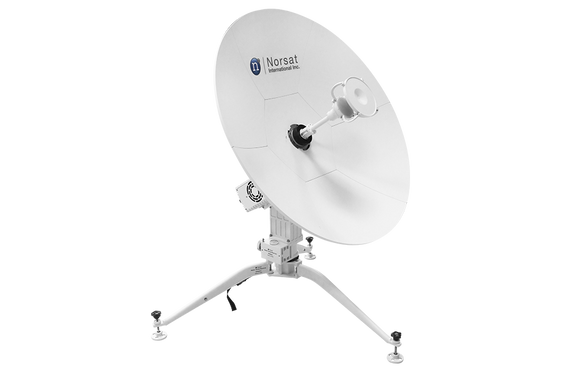

Norsat WFM090KU Serial No. 70758 - DEMO
Product Code:
WFM090KU
Condition:
New
Availability:
1 pcs
Weight:
0.00 KGS
$8,580.00
Description:
Wayfarer 0.9m Ku-Band Manual Flyaway Antenna
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Manual |
| Band | Ku-Band |
| Receive Frequency | Ku Band: 10.70 - 12.75 GHz |
| Reflector Diameter | 0.9m |
| Reflector Material | Carbon Fiber |
| Transmit Frequency | Ku-Band: 13.75 - 14.50 GHz |
| ANTENNA SPECIFICATIONS | |
| Azimuth Range | ±180˚ |
| Cross Polarization Isolation | ≥35 dB |
| Elevation Range | 0˚ to 90˚ |
| Feed Configuration | Centre-feed |
| Polarization | Linear ±90° |
| Sidelobe | First sidelobe < -14 dB |
| Standard Buc Options | 2W, 3W, 4W, 6W, 8W, 10W, 16W, 20W, 40W |
| Standard Lnb Options | 1000H or HS1000 |
| RF SPECIFICATIONS | |
| Movement Platform | Elevation over Azimuth |
| Rx Frequency | 10.70 to 12.75 GHz |
| Rx Gain | 38.8+20log(f/12.5)dBi |
| Tx Frequency | 13.75 to 14.50 GHz |
| Tx Gain | 40.0+ 20log(f/14.25)dBi |
| Tx Rx Isolation Port Isolation | Rx > 35 dB; Tx ≥ 85 dB |
| INTERFACE SPECIFICATIONS | |
| Interfacility Link Cable | 10 m |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% (20°C) |
| IP Rating | IP 65 (antenna only) |
| Temperature Operational | -40°C to +60°C (Antenna) |
| Weatherproofing | IP 65 (antenna only) |
| Windspeed Operational | 70 km/h |
| Windspeed Survival | 100 km/h |
| PHYSICAL SPECIFICATIONS | |
| Number Of Cases | 1 (Up to 10W BUC) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
