Norsat International Inc.

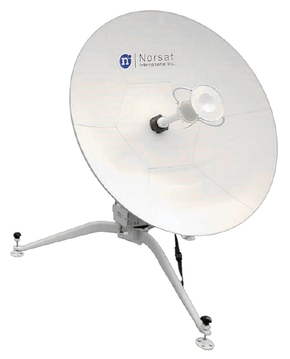

Norsat WFM090CP WAYFARER 0.9m C-Band Manual Flyaway Antenna - Prime Focus

Name: Norsat WFM090CP WAYFARER 0.9m C-Band Manual Flyaway Antenna - Prime Focus
Brand: Norsat International Inc.
SKU: WFM090CP
Price: 13800 USD
Availability: InStock

No reviews yet

Product Code: WFM090CP

Condition: New

Availability: 10 - 12 Weeks

Weight: 10.00 KGS

$13,800.00

KEY SPECIFICATIONS
Antenna Category	Flyaway
Band	C-Band
Of Onboard Los	Single-Band
ANTENNA SPECIFICATIONS
Antenna Aperture	0.9m
Antenna Type	Front feed and Positive Feed
Motion Range AZ	± 180°
Motion Range EL	-10° - +15°
Polarization	Horizontal
Sidelobe	First sidelobe ≤ -14 dB
RF SPECIFICATIONS
Power Capacity	50 W
Rx Frequency	4.40 - 5.00 GHz
Rx Gain	≥ 29.5dBi
Rx Interface	N-50K
Rx VSWR	≤ 1.5
Tx VSWR	≤ 1.5
ENVIRONMENTAL SPECIFICATIONS
Humidity	95% (20°C)
IP Rating	IP65
Temperature Operational	-40°C to +60°C
Temperature Storage	-50°C to +70°C
Windspeed Operational	≤11m/s (Compression weight)
Windspeed Survival	≤18m/s (Compression weight)
PHYSICAL SPECIFICATIONS
Color	White
Default Cable Length	10m
Product Weight	≤ 10 kg (excluding power amplifier, LNB, packaging and accessories)
ADDITIONAL INFORMATION
Country Of Origin	Made in China
ECCN Number	EAR99
Ex Works	Hong Kong
Harmonized System Code	8529109090
Warranty	1 year
