Norsat International Inc.

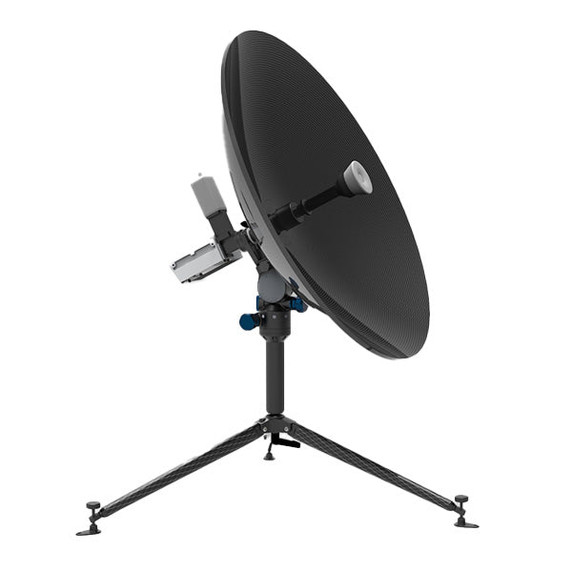

Norsat WFM080KUP WAYFARER 0.8m Ku-Band Manual Flyaway Antenna - Ring Focus Prime Feed
Product Code:
WFM080KUP
Condition:
New
Availability:
10 - 12 Weeks
Weight:
20.00 KGS
Width:
110.00
(cm)
Height:
127.00
(cm)
Depth:
110.00
(cm)
$13,750.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.8m |
| Antenna Category | Manual Flyaway |
| Band | Ku-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus Prime Feed |
| Azimuth Angle | ± 180° |
| Cross Polarization Isolation | ≥30 dB |
| Elevation Angle | 0° - 90° |
| Polarization | Linear |
| Polarization Range | ±90° |
| Sidelobe | ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | ≥ 85 dB |
| Port Isolation Tx-Rx | ≥ 40 dB |
| Power Capacity | ?500 W |
| Rx Frequency | 12.25 - 12.75 GHz |
| Rx Gain | ≥37.5+20lg(f/12.50)dBi |
| Rx Interface | WR75 |
| Rx VSWR | ≤ 1.35 : 1 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | ≥38.7+20lg(f/14.25)dBi |
| Tx Interface | WR75 |
| Tx VSWR | ≤ 1.35 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | ≤95%（20°C） |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55℃ to +70℃ |
| Windspeed Operational | ≤13 m/s |
| Windspeed Survival | ≤20 m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Number Of Cases | 1 |
| Packed By | wood crate and aluminium shipping case |
| Product Height | 1270 mm |
| Product Length | 1100 mm |
| Product Weight | 20 kg |
| Product Width | 1100 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Package Height Case 1 | 500 mm |
| Package Length Case 1 | 880 mm |
| Package Weight Case 1 | 45kg |
| Package Width Case 1 | 650 mm |
| Unit Package Dimensions | 1100*1100*1270 (mm) |
| Unit Package Weight | 45kg |
| Warranty | 1 year |
