Norsat International Inc.

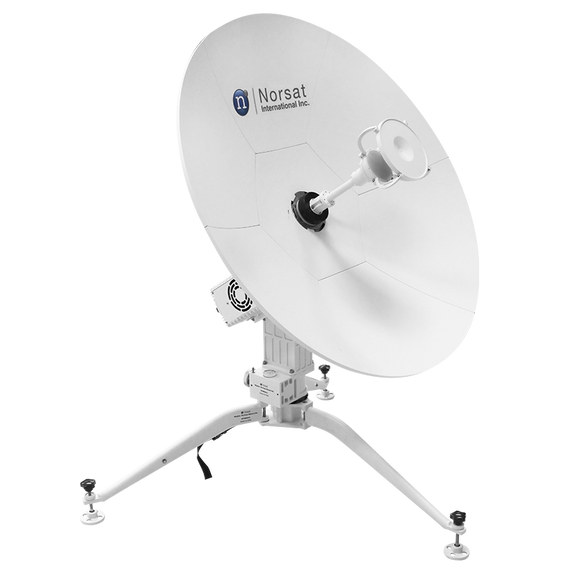

Norsat WFM080KA WAYFARER 0.8m Ka-Band Manual Flyaway Antenna - Ring Focus
Product Code:
WFM080KA
Condition:
New
Availability:
10 - 12 Weeks
Weight:
11.00 KGS
Width:
85.60
(cm)
Height:
72.50
(cm)
Depth:
41.60
(cm)
$24,708.00
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.8m |
| Antenna Category | Manual Flyaway |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Axis Ratio | ≤ 1.5dB |
| Azimuth Angle | 360° |
| Azimuth Range | ±180° |
| Elevation Angle | 0° to 90° |
| Elevation Range | 0° to 90° |
| Feed Configuration | Center |
| Polarization | Circular |
| Polarization Range | ± 90° |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | Tx > 85dB |
| Port Isolation Tx-Rx | Rx > 40dB |
| Power Capacity | 50 W |
| Rx Frequency | 19.20 - 20.20 GHz |
| Rx Gain | 41.4 + 20lg(f/20.0) dBi |
| Rx Interface | WR42 |
| Rx VSWR | 1.5 |
| Tx Frequency | 29.0 - 30.0 GHz |
| Tx Gain | 45.0 + 20lg(f/30.0) dBi |
| Tx Interface | WR28 |
| Tx Rx Isolation Port Isolation | Rx > 35dB; Tx > 85dB |
| Tx VSWR | 1.5 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IR 65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50°C to +70℃ |
| Windspeed Operational | 11 m/s |
| Windspeed Survival | ≤ 18m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable Length | 10m |
| Number Of Cases | 1 standard |
| Product Weight | ≤ 11 kg (without BUC, LNB, packaging and accessories etc.) |
| Reflector Material | Carbon fiber |
| Ruggedized Case 1 Height | 41.6 cm |
| Ruggedized Case 1 Length | 85.6 cm |
| Ruggedized Case 1 Weight | ≤22Kg |
| Ruggedized Case 1 Width | 72.5 cm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
The Norsat WAYFARER™ commercial 0.8m fly-away antenna is a fast deploying, easy-to-use, and compact SATCOM VSAT. This terminal is an excellent choice for commercial applications in various industries.
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
