Norsat International Inc.

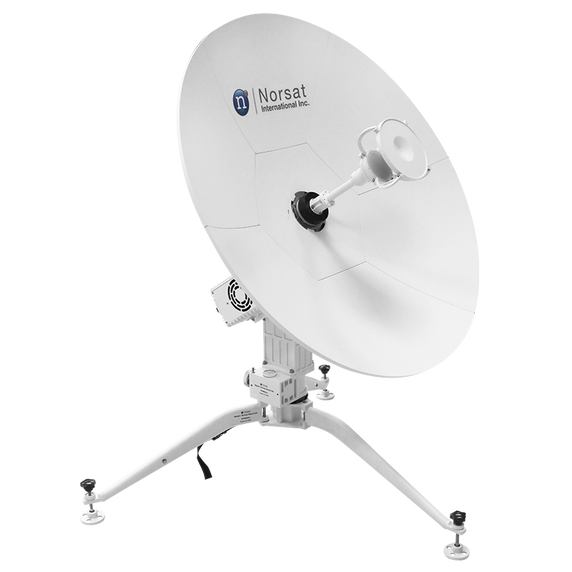

Norsat WFM080KA-EOL WAYFARER 0.8m Ka-Band Manual Flyaway Antenna - Ring Focus - DEMO
Product Code:
WFM080KA-EOL
Condition:
New
Availability:
1 pcs
Weight:
0.00 KGS
$24,708.00
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Manual |
| Antenna Aperture | 0.8m |
| Antenna Category | Flyaway |
| Band | Ka-Band |
| Reflector Material | Carbon fiber |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Axis Ratio | ≤ 1.5dB |
| Azimuth Range | ±180° |
| Elevation Range | 0° to 90° |
| Feed Configuration | Center |
| Feed Interface | Tx: WR28; Rx: WR42 |
| Polarization | Circular |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Output VSWR | 2.0 : 1 max. |
| Rx Frequency | 19.20 - 20.20 GHz |
| Rx Gain | 41.4 + 20lg(f/20.0) dB |
| Tx Frequency | 29.0 - 30.0 GHz |
| Tx Gain | 45.0 + 20lg(f/30.0) dBi |
| Tx Rx Isolation Port Isolation | Rx > 35dB; Tx > 85dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% (20°C) |
| IP Rating | IP 65 (antenna only) |
| Temperature Operational | -40 to +60°C |
| Wind Load Operational | 40 km/h |
| Wind Load Survival | 65 km/h |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | 10m |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
The Norsat WAYFARER™ commercial 0.8m fly-away antenna is a fast deploying, easy-to-use, and compact SATCOM VSAT. This terminal is an excellent choice for commercial applications in various industries.
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
