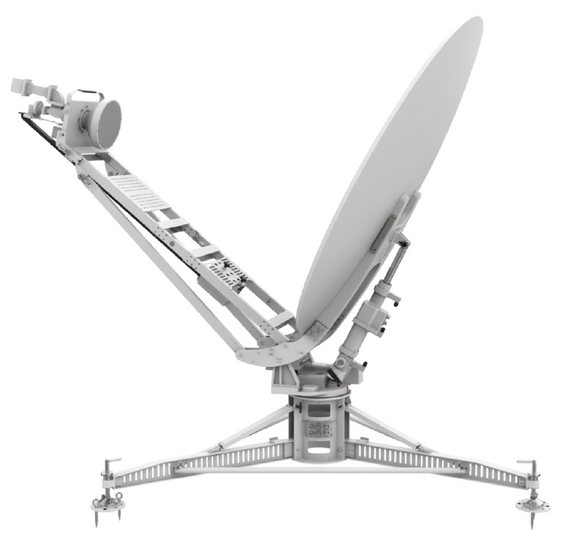

Norsat WFM-100050 3.0m X/Ku Dual-Band Manual Flyaway Antenna - Offset -Fiber Glass (Colour-Green)
Product Code:
WFM-100050
Condition:
New
Availability:
10 - 12 Weeks
Weight:
300.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Antenna Aperture | 3.0m |
| Antenna Category | Manual Flyaway |
| Band | X-Band / Ku-Band |
| Color | Green |
| Satellite Compatible | INTELSAT, EUTELSAT |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Offset Gregorian Dual-Reflector |
| Axial Ratio | X-Band: ≤ 1 dB Ku-band: N/A |
| Cross Polarization Isolation | X-Band: N/A Ku-Band: 35 dB (On Axis) |
| Motion Range AZ | ± 200° |
| Motion Range EL | 0° - 90° |
| Motion Range POL | X-Band: N/A Ku-Band: ± 90° |
| Polarization | X-Band: Circular Ku-Band: Linear |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Noise Temperature Elevation 20° | X-Band: ≤ 50 K Ku-Band: ≤ 56 K |
| Port Isolation Tx-Rx | X-Band: 85 dB Ku-Band: 85 dB |
| Power Capacity | ≤ 100 W |
| Rx Frequency | X-Band: 7.25 - 7.75 GHz Ku-Band: 10.70 - 12.75 GHz |
| Rx Gain | X-Band: 45.2+20lg(f/7.5) dBi Ku-Band: 49.6+20lg(f/12.5) dBi |
| Rx Interface | X-Band: WR112 Ku-Band: WR75 |
| Rx VSWR | ≤ 1.4 : 1 |
| Tx Frequency | X-Band: 7.9 ‐ 8.4 GHz Ku-Band: 13.75 - 14.50 GHz |
| Tx Gain | X-Band: 46.0+20lg(f/8.15) dBi
Ku-Band: 50.5+20lg(f/14.25) dBi |
| Tx Interface | X-Band: WR112 Ku-Band: WR75 |
| Tx VSWR | ≤ 1.3：1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | ≤ 3000W |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0-95% |
| Temperature Operational | -40℃ to +60℃ |
| Temperature Storage | -55℃ to +70℃ |
| Windspeed Operational | ≤ 11m/s (ballast weight) |
| Windspeed Survival | ≤ 25m/s guy ropes requirement on all sides when total weight of antenna increases to 60 kg |
| PHYSICAL SPECIFICATIONS | |
| Product Weight | ≤ 300 kg (excluding BUC, LNB, packaging and accessories) |
| Reflector Construction | Fiber Glass |
| Structure | EL over AZ |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Canada |
| Harmonized System Code | 8517700000 |
| Warranty | 1 year |
