Norsat International Inc.

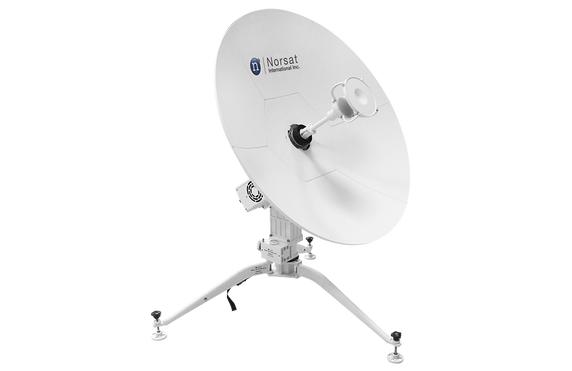

Norsat WFM-100046 1.2m Ka-Band Manual Flyaway Antenna - Ring Focus
Product Code:
WFM-100046
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Manual Flyaway |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Axial Ratio | 1.5 dB |
| Motion Range AZ | 360° |
| Motion Range EL | 15° - 90° |
| Polarization | Circular |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | 85 dB |
| Power Capacity | 50 W |
| Rx Frequency | 19.2 - 21.2 GHz |
| Rx Gain | 45.4+20lg(f/20) dBi |
| Rx Interface | WR42 |
| Tx Frequency | 29.0 - 31.0 GHz |
| Tx Gain | 48.5+20lg(f/30) dBi |
| Tx Interface | WR28 |
| VSWR | 1.3 : 1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C |
| Windspeed Operational | 11 m/s (Ballast Weight) |
| Windspeed Survival | 18 m/s (Ballast Weight) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517710000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Manual Flyaway |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Axial Ratio | 1.5 dB |
| Motion Range AZ | 360° |
| Motion Range EL | 15° - 90° |
| Polarization | Circular |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | 85 dB |
| Power Capacity | 50 W |
| Rx Frequency | 19.2 - 21.2 GHz |
| Rx Gain | 45.4+20lg(f/20) dBi |
| Rx Interface | WR42 |
| Tx Frequency | 29.0 - 31.0 GHz |
| Tx Gain | 48.5+20lg(f/30) dBi |
| Tx Interface | WR28 |
| VSWR | 1.3 : 1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C |
| Windspeed Operational | 11 m/s (Ballast Weight) |
| Windspeed Survival | 18 m/s (Ballast Weight) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517710000 |
