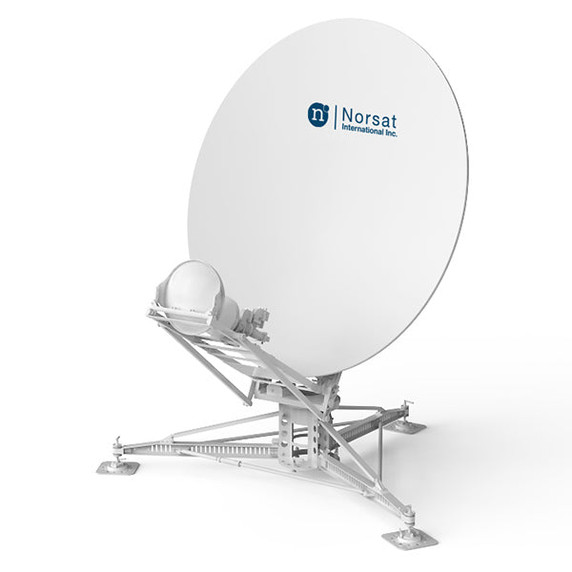

Norsat WFM-100044 2.4m C/X/Ku Triple-Band Manual Flyaway Antenna - Offset RAL6031
Product Code:
WFM-100044
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 2.4m |
| Antenna Category | Manual Flyaway |
| Band | C-Band / X-Band / Ku-Band |
| Color | RAL6031 |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Offset Gregorian Dual-Reflector |
| Axial Ratio | C-Band: N/A X-Band: 1.5 dB Ku-band: N/A |
| Cross Polarization Isolation | C-Band: 30 dB (On Axis) X-Band: N/A Ku-Band: 35 dB (On Axis) |
| Motion Range AZ | 360° |
| Motion Range EL | 0° - 90° |
| Motion Range POL | C-Band: ± 90° X-Band: N/A Ku-Band: ± 90° |
| Polarization | C-Band: Linear X-Band: Circular Ku-Band: Linear |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Tx-Rx | C-Band: 85 dB X-Band: 80 dB Ku-Band: 85 dB |
| Power Capacity | C-Band: 500 W X-Band: 400 W Ku-Band: 200 W |
| Rx Frequency | C-Band: 3.4 - 4.2 GHz X-Band: 7.25 - 7.75 GHz Ku-Band: 10.70 - 12.75 GHz |
| Rx Gain | C-Band: 37.4+20lg(f/3.8) dBi X-Band: 43.3+20lg(f/7.5) dBi Ku-Band: 47.2+20lg(f/12.5) dBi |
| Rx Interface | C-Band: WR229 X-Band: WR112 Ku-Band: WR75 |
| Tx Frequency | C-Band: 5.85 - 6.725 GHz X-Band: 7.9 ‐ 8.4 GHz Ku-Band: 13.75 - 14.50 GHz |
| Tx Gain | C-Band: 42.0+20lg(f/6.5) dBi X-Band: 44.0+20lg(f/8.15) dBi Ku-Band: 48.7+20lg(f/14.25) dBi |
| Tx Interface | C-Band: WR137 X-Band: WR112 Ku-Band: WR75 |
| VSWR | C-Band: 1.5 : 1 X-Band: 1.5 : 1 Ku-Band: 1.3 : 1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Relative Humidity | 0-100% |
| Temperature Operational | -40℃ to +60℃ |
| Windspeed Operational | ≤ 11m/s (ballast weight) |
| Windspeed Survival | ≤ 18/s (ballast weight) |
| PHYSICAL SPECIFICATIONS | |
| Number Of Cases | 7 Cases |
| Product Weight | C-Band: ≤ 230 kg; X-Band: ≤ 228 kg; Ku-Band: ≤ 220 kg (weight excludes BUC, LNB, packaging and accessories) |
| Reflector Construction | Carbon Fiber |
| Structure | EL over AZ |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Shenzhen |
| Harmonized System Code | 8517700000 |
| Warranty | 1 year |
