Norsat International Inc.

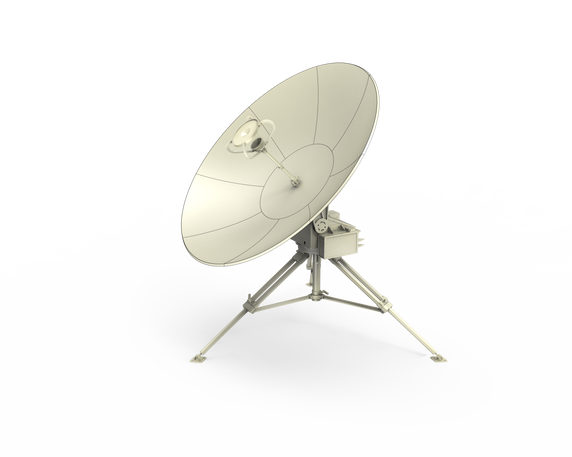

Norsat WFAQ180R WAYFARER 1.8m Multi-Band Auto Flyaway Antenna - Ring Focus
Product Code:
WFAQ180R
Condition:
New
Availability:
10 - 12 Weeks
Weight:
140.00 KGS
Width:
280.00
(cm)
Height:
290.00
(cm)
Depth:
280.00
(cm)
$110,000.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.8m |
| Antenna Category | Auto Flyaway |
| Band | Ku-Band & Ka-Band & X-Band & C-Band |
| Number Of Onboard Los | Multi-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Azimuth Angle | ±180° |
| Azimuth Velocity | 0.1°/s～3°/s |
| Blockage Recovery Time | ≤1min |
| Elevation Angle | 0° - 90° |
| Elevation Veolcity | 0.1°/s～3°/s |
| Initial Auto Acquisition Time | ≤3min |
| Polarization | Linear&Circular |
| Polarization Velocity | 0.1°/s～3°/s |
| Sidelobe | ≤-14dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | ≥85dB |
| Port Isolation Tx-Rx | ≥40dB |
| Power Capacity | ≤500W |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95%（20°C） |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55℃ to +70℃ |
| Windspeed Operational | 13m/s |
| Windspeed Survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power supply and network cable |
| Default Cable Length | 5 m |
| Number Of Cases | 4 |
| Packed By | wood crate and aluminium shipping case |
| Product Height | 2900 mm |
| Product Length | 2800 mm |
| Product Weight | 140 kg |
| Product Width | 2800 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Package Height Case 3 | 420 mm |
| Package Height Case 4 | 540 mm |
| Package Length Case 3 | 1030 mm |
| Package Length Case 4 | 760 mm |
| Package Width Case 3 | 750 mm |
| Package Width Case 4 | 720 mm |
| Unit Package Dimensions | 2800*2800*2900(mm) |
| Unit Package Weight | 240kg |
| Warranty | 1 year |
