Norsat International Inc.

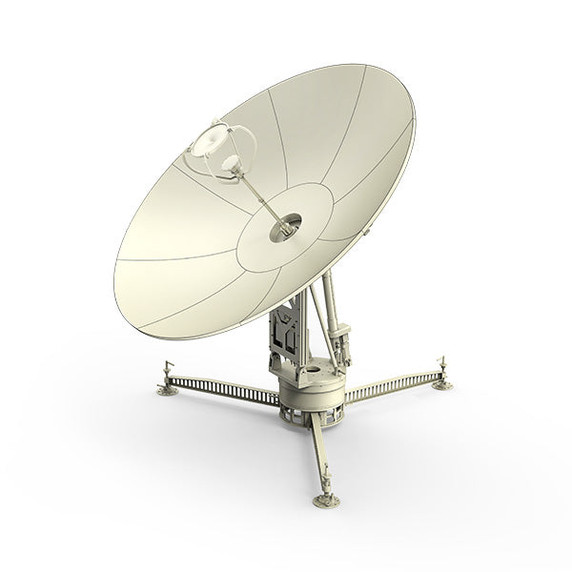

Norsat WFA240KUR WAYFARER 2.4m Ku-Band Auto Flyaway Antenna - Ring Focus
Product Code:
WFA240KUR
Condition:
New
Availability:
10 - 12 Weeks
Weight:
145.00 KGS
Width:
270.00
(cm)
Height:
580.00
(cm)
Depth:
270.00
(cm)
$134,750.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 2.4m |
| Antenna Category | Auto Flyaway |
| Band | Ku-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Azimuth Angle | ±220° |
| Azimuth Velocity | 0.1°/s～3°/s |
| Blockage Recovery Time | ≤1min |
| Cross Polarization Isolation | ≥30 dB |
| Elevation Angle | 0° - 90° |
| Elevation Veolcity | 0.1°/s～1°/s |
| Initial Auto Acquisition Time | ≤3min |
| Polarization | Linear |
| Polarization Range | ±90° |
| Polarization Velocity | 0.1°/s～3°/s |
| Sidelobe | ≤-14dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | ≥85dB |
| Port Isolation Tx-Rx | ≥40dB |
| Power Capacity | ≤500W |
| Rx Frequency | 10.95 - 12.75 GHz |
| Rx Gain | 47+20lg(f/12.25) |
| Rx Interface | WR75 |
| Rx VSWR | ≤ 1.35 : 1 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 48+20lg(f/14.25) |
| Tx Interface | WR75 |
| Tx VSWR | ≤ 1.35 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95%（20°C） |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55℃ to +70℃ |
| Windspeed Operational | 13m/s |
| Windspeed Survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power supply, network cable, RF Cable |
| Default Cable Length | 5 m |
| Number Of Cases | 4 |
| Packed By | wood crate and aluminium shipping case |
| Product Height | 5800 mm |
| Product Length | 2700 mm |
| Product Weight | 145 kg |
| Product Width | 2700 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Package Height Case 1 | 580 mm |
| Package Height Case 2 | 350 mm |
| Package Height Case 3 | 430 mm |
| Package Height Case 4 | 430 mm |
| Package Length Case 1 | 1020 mm |
| Package Length Case 2 | 1240 mm |
| Package Length Case 3 | 1150 mm |
| Package Length Case 4 | 820 mm |
| Package Weight Case 1 | 100 kg |
| Package Weight Case 2 | 80 kg |
| Package Width Case 1 | 1080 mm |
| Package Width Case 2 | 600 mm |
| Package Width Case 3 | 570 mm |
| Package Width Case 4 | 520 mm |
| Unit Package Dimensions | 1020*1080*580 1240*600*350 1150*570*430 820*520*430(mm) |
| Unit Package Weight | 245kg |
| Warranty | 1 year |
