Norsat International Inc.

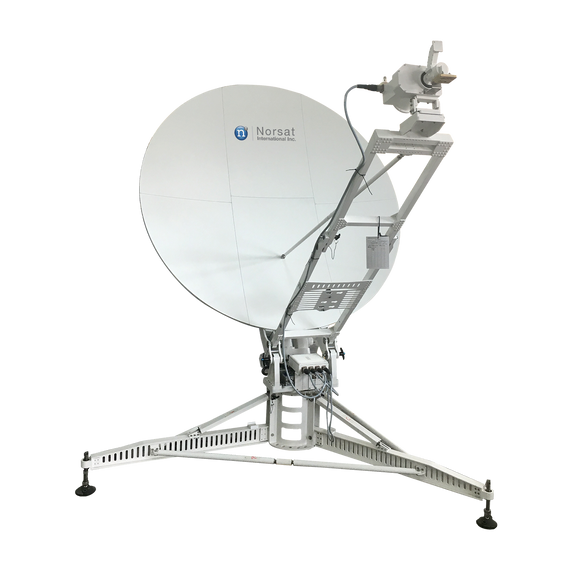

Norsat WFA180KU-IEC WAYFARER 1.8m Ku-Band Auto Flyaway Antenna - Single Offset
Product Code:
WFA180KU-IEC
Condition:
New
Availability:
1 - 2 Weeks
Weight:
145.00 KGS
$73,793.00
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.8m |
| Antenna Category | Auto Flyaway |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Single Offset |
| Azimuth Angle | ±220° |
| Azimuth Range | ±180° |
| Azimuth Velocity | 0.1°/s to 3°/s |
| Cross Polarization Isolation | ≥35 dB |
| Elevation Angle | 10°~85° |
| Elevation Range | 0° to 90° |
| Elevation Veolcity | 0.1°/s to 3°/s |
| Feed Configuration | Offset |
| Movement Overrides | Manual (Azimuth/Elevation) |
| Polarization | Linear |
| Polarization Range | ± 90° |
| Polarization Velocity | 0.1°/s to 3°/s |
| Sidelobe | First sidelobe ≤ -14 dB |
| Standard BUC Options | 8W, 20W, 40W, 80W |
| Standard LNB Options | 1000H or HS1000 |
| RF SPECIFICATIONS | |
| Movement Platform | Motorized Elevation over Azimuth |
| Port Isolation Rx-Tx | Tx > 85dB |
| Port Isolation Tx-Rx | Rx > 40dB |
| Power Capacity | 100 W |
| Rx Frequency | 10.95 - 12.75 GHz |
| Rx Gain | 45.0+20log(f/12.5) dBi |
| Rx Interface | WR75 |
| Rx VSWR | 1.3 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 46.1+20log(f/14.25) dBi |
| Tx Interface | WR75 |
| Tx Rx Isolation Port Isolation | Rx > 35dB; Tx > 85dB |
| Tx VSWR | 1.3 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220VAC 50Hz, ≤ 80W (excluding BUC, windless condition) |
| INTERFACE SPECIFICATIONS | |

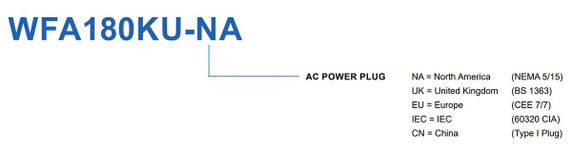

| AC Input Interface | IEC (60320 CIA) |
| Interfacility Link Cable | 10 m |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% (20°C) |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -50°C to +65°C |
| Windspeed Operational | 11m/s |
| Windspeed Survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power Supply and RF cable |
| Default Cable Length | 10m |
| Number Of Cases | 6 standard |
| Product Weight | ≤145 kg (excluding power amplifier, LNB, packaging and accessories, etc.) |
| Reflector Material | Carbon fiber |
| Ruggedized Case 1 Height | 68 cm |
| Ruggedized Case 1 Length | 121 cm |
| Ruggedized Case 1 Weight | ≤50Kg |
| Ruggedized Case 1 Width | 44 cm |
| Ruggedized Case 2 Height | 32 cm |
| Ruggedized Case 2 Length | 131 cm |
| Ruggedized Case 2 Weight | ≤50Kg |
| Ruggedized Case 2 Width | 72 cm |
| Ruggedized Case 3 Height | 32 cm |
| Ruggedized Case 3 Length | 78 cm |
| Ruggedized Case 3 Weight | ≤50Kg |
| Ruggedized Case 3 Width | 54 cm |
| Ruggedized Case 4 Height | 52 cm |
| Ruggedized Case 4 Length | 119 cm |
| Ruggedized Case 4 Weight | ≤50Kg |
| Ruggedized Case 4 Width | 39 cm |
| Ruggedized Case 5 Height | 68 cm |
| Ruggedized Case 5 Length | 60 cm |
| Ruggedized Case 5 Weight | ≤50Kg |
| Ruggedized Case 5 Width | 48 cm |
| Ruggedized Case 6 Height | 35 cm |
| Ruggedized Case 6 Length | 151 cm |
| Ruggedized Case 6 Weight | ≤50Kg |
| Ruggedized Case 6 Width | 52 cm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
The Norsat WAYFARER™ commercial 1.8m fly-away antenna is a fast deploying, easy-to-use, and compact SATCOM VSAT. This terminal is an excellent choice for commercial applications in various industries.
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.8m |
| Antenna Category | Auto Flyaway |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Single Offset |
| Azimuth Angle | ±220° |
| Azimuth Range | ±180° |
| Azimuth Velocity | 0.1°/s to 3°/s |
| Cross Polarization Isolation | ≥35 dB |
| Elevation Angle | 10°~85° |
| Elevation Range | 0° to 90° |
| Elevation Veolcity | 0.1°/s to 3°/s |
| Feed Configuration | Offset |
| Movement Overrides | Manual (Azimuth/Elevation) |
| Polarization | Linear |
| Polarization Range | ± 90° |
| Polarization Velocity | 0.1°/s to 3°/s |
| Sidelobe | First sidelobe ≤ -14 dB |
| Standard BUC Options | 8W, 20W, 40W, 80W |
| Standard LNB Options | 1000H or HS1000 |
| RF SPECIFICATIONS | |
| Movement Platform | Motorized Elevation over Azimuth |
| Port Isolation Rx-Tx | Tx > 85dB |
| Port Isolation Tx-Rx | Rx > 40dB |
| Power Capacity | 100 W |
| Rx Frequency | 10.95 - 12.75 GHz |
| Rx Gain | 45.0+20log(f/12.5) dBi |
| Rx Interface | WR75 |
| Rx VSWR | 1.3 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 46.1+20log(f/14.25) dBi |
| Tx Interface | WR75 |
| Tx Rx Isolation Port Isolation | Rx > 35dB; Tx > 85dB |
| Tx VSWR | 1.3 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220VAC 50Hz, ≤ 80W (excluding BUC, windless condition) |
| INTERFACE SPECIFICATIONS | |
| AC Input Interface | IEC (60320 CIA) |
| Interfacility Link Cable | 10 m |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% (20°C) |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -50°C to +65°C |
| Windspeed Operational | 11m/s |
| Windspeed Survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power Supply and RF cable |
| Default Cable Length | 10m |
| Number Of Cases | 6 standard |
| Product Weight | ≤145 kg (excluding power amplifier, LNB, packaging and accessories, etc.) |
| Reflector Material | Carbon fiber |
| Ruggedized Case 1 Height | 68 cm |
| Ruggedized Case 1 Length | 121 cm |
| Ruggedized Case 1 Weight | ≤50Kg |
| Ruggedized Case 1 Width | 44 cm |
| Ruggedized Case 2 Height | 32 cm |
| Ruggedized Case 2 Length | 131 cm |
| Ruggedized Case 2 Weight | ≤50Kg |
| Ruggedized Case 2 Width | 72 cm |
| Ruggedized Case 3 Height | 32 cm |
| Ruggedized Case 3 Length | 78 cm |
| Ruggedized Case 3 Weight | ≤50Kg |
| Ruggedized Case 3 Width | 54 cm |
| Ruggedized Case 4 Height | 52 cm |
| Ruggedized Case 4 Length | 119 cm |
| Ruggedized Case 4 Weight | ≤50Kg |
| Ruggedized Case 4 Width | 39 cm |
| Ruggedized Case 5 Height | 68 cm |
| Ruggedized Case 5 Length | 60 cm |
| Ruggedized Case 5 Weight | ≤50Kg |
| Ruggedized Case 5 Width | 48 cm |
| Ruggedized Case 6 Height | 35 cm |
| Ruggedized Case 6 Length | 151 cm |
| Ruggedized Case 6 Weight | ≤50Kg |
| Ruggedized Case 6 Width | 52 cm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
