Norsat International Inc.

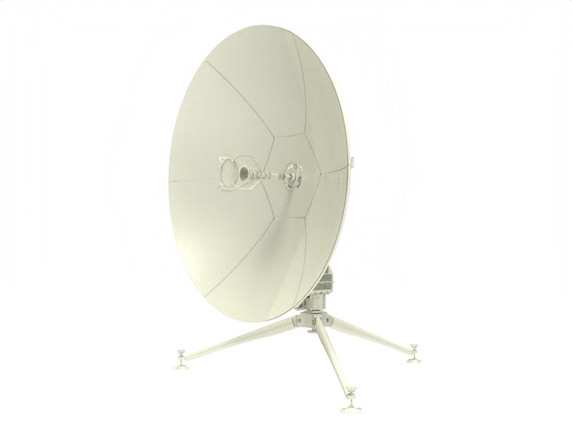

Norsat WFA120KUB WAYFARER 1.2m Ku-Band Auto Flyaway Antenna - Feed Back
Product Code:
WFA120KUB
Condition:
New
Availability:
10 - 12 Weeks
Weight:
25.00 KGS
Width:
150.00
(cm)
Height:
150.00
(cm)
Depth:
125.00
(cm)
$48,125.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Auto Flyaway |
| Band | Ku-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Feed Back |
| Azimuth Angle | ±90° |
| Azimuth Velocity | 0.1°/s～3°/s |
| Blockage Recovery Time | ≤1min |
| Cross Polarization Isolation | ≥30 dB |
| Elevation Angle | 5° - 90° |
| Elevation Veolcity | 0.1°/s～3°/s |
| Initial Auto Acquisition Time | ≤3min |
| Polarization | Linear |
| Polarization Range | ±90° |
| Polarization Velocity | 0.1°/s～3°/s |
| Sidelobe | ≤-14dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | ≥85dB |
| Port Isolation Tx-Rx | ≥40dB |
| Power Capacity | ≤500 W |
| Rx Frequency | 10.95 - 12.75 GHz |
| Rx Gain | 40.91+20lg(f/12.25)dBi |
| Rx Interface | WR75 |
| Rx VSWR | ≤ 1.35 : 1 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 42.22+20lg(f/14.25)dBi |
| Tx Interface | WR75 |
| Tx VSWR | ≤ 1.35 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95%（20°C） |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55℃ to +70℃ |
| Windspeed Operational | 13m/s |
| Windspeed Survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power supply and network cable |
| Default Cable Length | 5 m |
| Number Of Cases | 2 |
| Packed By | wood crate and aluminium shipping case |
| Product Height | 1500 mm |
| Product Length | 1250 mm |
| Product Weight | 25 kg |
| Product Width | 1500 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Package Height Case 1 | 330 mm |
| Package Height Case 2 | 400 mm |
| Package Length Case 1 | 940 mm |
| Package Length Case 2 | 650 mm |
| Package Weight Case 1 | 40 kg |
| Package Weight Case 2 | 50 kg |
| Package Width Case 1 | 790 mm |
| Package Width Case 2 | 650 mm |
| Unit Package Dimensions | 940*790*330 650*650*400（mm） |
| Unit Package Weight | 45 kg |
| Warranty | 1 year |
