Norsat International Inc.

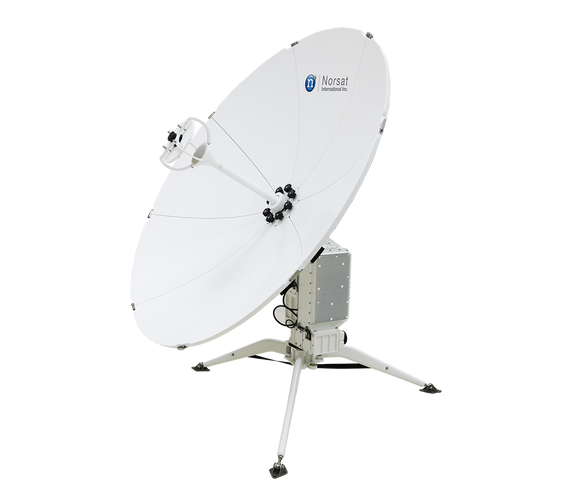

Norsat WFA120KU-EU WAYFARER 1.2m Ku-Band Auto Flyaway Antenna - Ring Focus
Product Code:
WFA120KU-EU
Condition:
New
Availability:
10 - 12 Weeks
Weight:
28.00 KGS
Width:
170.00
(cm)
Height:
124.00
(cm)
Depth:
98.00
(cm)
$51,271.00
The Norsat WAYFARER™ commercial 1.2m fly-away antenna is a fast deploying, easy-to-use, and compact SATCOM VSAT. This terminal is an excellent choice for commercial applications in various industries.
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
LNB OPTIONS: 1000H or HS1000 Series, with Type F (75 Ohm) Connector
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Auto Flyaway |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Azimuth Angle | ± 200° |
| Azimuth Range | ± 200° |
| Azimuth Velocity | 0.1°/s to 3°/s |
| Cross Polarization Isolation | ≥35 dB |
| Elevation Angle | 15° to 90° |
| Elevation Range | 10° to 90° |
| Elevation Veolcity | 0.1°/s to 3°/s |
| Feed Configuration | Center |
| Initial Auto Acquisition Time | ≤ 3 min |
| Movement Overrides | Manual (Azimuth/Elevation) |
| Polarization | Linear |
| Polarization Range | ± 95° |
| Polarization Velocity | 1°/s |
| Sidelobe | First sidelobe -14 dB |
| Standard BUC Options | 2W,3W,4W,6W,8W,10W,16W,20W,40W |
| Standard LNB Options | 1000H or HS1000 Series, with Type F (75 Ohm) Connector |
| Starway | Beacon/DVB carrier |
| RF SPECIFICATIONS | |
| Movement Platform | Motorized Elevation over Azimuth |
| Port Isolation Rx-Tx | Tx ≥ 85 dB |
| Port Isolation Tx-Rx | Rx ≥ 40dB |
| Power Capacity | 100 W |
| Rx Frequency | 10.70 - 12.75 GHz |
| Rx Gain | 41.5 dBi + 20log (f/11.85) dBi |
| Rx Interface | WR75 |
| Rx VSWR | 1.5 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 42.5 + 20log (f/14.125) dBi |
| Tx Interface | WR75 |
| Tx Rx Isolation Port Isolation | Rx ≥ 40dB; Tx ≥ 85 dB |
| Tx VSWR | 1.5 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220VAC 50Hz, ≤ 150W (excluding BUC, windless condition) |
| INTERFACE SPECIFICATIONS | |

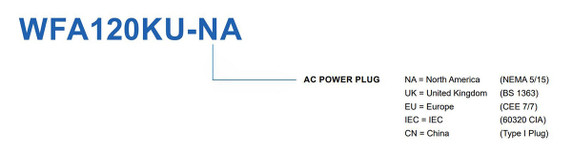

| AC Input Interface | Europe (CEE 7/7) |
| Positioning Mode | GPS |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP 65 |
| Temperature Operational | -30°C to +60°C |
| Temperature Storage | -30°C to +70°C |
| Windspeed Operational | 11m/s |
| Windspeed Survival | 18 m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power Supply and RF cable |
| Default Cable Length | 10m |
| Number Of Cases | 2 standard |
| Product Weight | ≤ 28 kg (excluding BUC, packaging and accessories) |
| Reflector Material | Carbon fiber |
| RMS | ≤0.3dB |
| Ruggedized Case 1 Height | 49 cm |
| Ruggedized Case 1 Length | 84.5 cm |
| Ruggedized Case 1 Weight | ≤30Kg |
| Ruggedized Case 1 Width | 62 cm |
| Ruggedized Case 2 Height | 49 cm |
| Ruggedized Case 2 Length | 84.5 cm |
| Ruggedized Case 2 Weight | ≤26Kg |
| Ruggedized Case 2 Width | 62 cm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 560 x 750 x 800 mm |
| Unit Package Weight | 70 kg |
| Warranty | 1 year |
