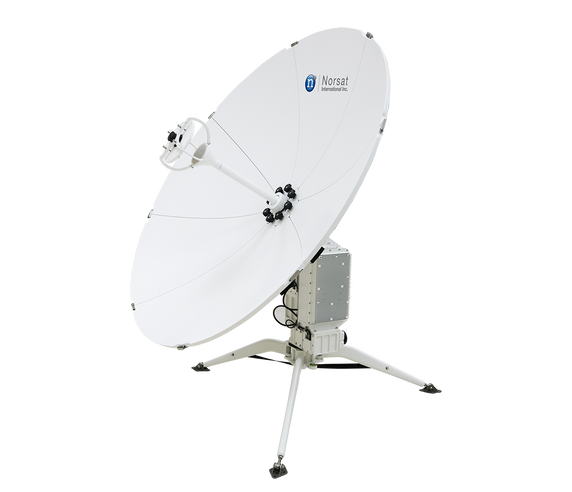

Norsat WFA120KU-CN WAYFARER 1.2m Ku-Band Auto Flyaway Antenna
Product Code:
WFA120KU-CN
Condition:
New
Availability:
YES
Weight:
50.00 KGS
$49,000.00
Norsat WFA120KU-CN WAYFARER 1.2m Ku-Band Auto Flyaway Antenna
The Norsat WAYFARER™ commercial 1.2m fly-away antenna is a fast deploying, easy-to-use, and compact SATCOM VSAT. This terminal is an excellent choice for commercial applications in various industries.
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
| KEY SPECIFICATIONS | |
|---|---|
| Acquisition And Tracking | Automatic |
| Band | Ka-Band |
| Receive Frequency | Ka-Band: 18.70 - 21.20 GHz |
| Reflector Diameter | 1.2 m |
| Transmit Frequency | Ka-Band: 29.00 - 31.00 GHz |
| ANTENNA SPECIFICATIONS | |
|---|---|
| Azimuth Range | +/- 200° |
| Cross Polarization Isolation | ≥ 23.5 dB |
| Elevation Range | 10° - 90° |
| Feed Configuration | Centre-feed |
| Movement Overrides | Manual (Azimuth/Elevation) |
| Polarization | Circular |
| Standard Buc Options | ELMTBKA012/ATOMBKA025/ATOMBKA050 |
| Standard Lnb Options | 9000 Series LNB |
| RF SPECIFICATIONS | |
|---|---|
| Movement Platform | Motorized Elevation over Azimuth |
| Rx Gain | 43.3 dBi @ 18.7 GHz |
| Tx Gain | 46.4 dBi @ 29.0 GHz |
| ELECTRICAL SPECIFICATIONS | |
|---|---|

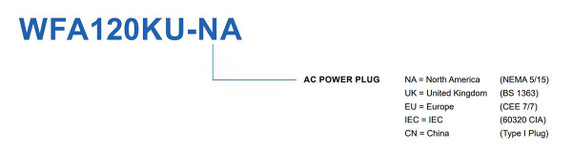

| Power Connector | China (Type I Plug) |
| Power Requirements | AC110-230V 50/60Hz, rated 200W, 550W max |
| INTERFACE SPECIFICATIONS | |
|---|---|
| Interfacility Link Cable | 10 m |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Humidity | 0 - 95% |
| Temperature Operational | -30°C to +60°C (Antenna) |
| Temperature Storage | -50 to +70°C |
| Weatherproofing | IP 65 (antenna only) |
| Windspeed Operational | 49 km/h |
| Windspeed Survival | 100 km/h |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Number Of Cases | 2 standard |
