Norsat International Inc.

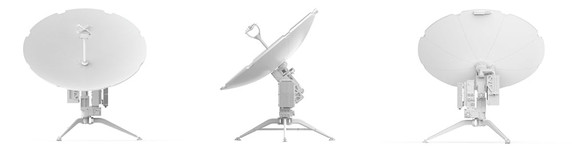

Norsat WFA120KAP WAYFARER 1.2m Ka-Band Auto Flyaway Antenna - Ring Focus Prime Feed

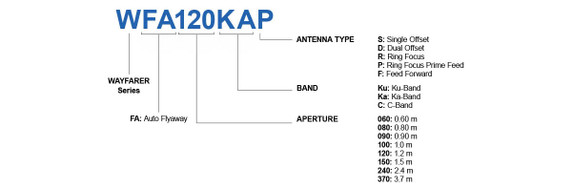

Product Code:
WFA120KAP
Condition:
New
Availability:
10 - 12 Weeks
Weight:
26.00 KGS
$60,500.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Auto Flyaway |
| Band | Ka-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus Prime Feed |
| Axis Ratio | ≤ 1.0 dB |
| Azimuth Angle | ±200° |
| Azimuth Velocity | 0.1° /S ～3° /S |
| Elevation Angle | 10° - 90° |
| Elevation Veolcity | 0.1° /S ～3° /S |
| Initial Auto Acquisition Time | ≤ 3 min |
| Pointing Accuracy | ≤ 0.5 dB |
| Polarization | Circular |
| Polarization Velocity | 1° /S |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | 85 dB |
| Port Isolation Tx-Rx | 40 dB |
| Power Capacity | 100 W |
| Rx Frequency | 17.70 - 21.20 GHz |
| Rx Gain | ≥ 45.0 +20lg(f/20GHz)dBi |
| Rx Interface | WR42 |
| Rx VSWR | ≤ 1.5：1 |
| Tx Frequency | 27.50 - 31.00 GHz |
| Tx Gain | ≥ 48.5+20lg(f/29.25GHz)dBi |
| Tx Interface | WR28 |
| Tx VSWR | ≤ 1.5：1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | AC 110 - 240V, 47-63 Hz, ≤ 100W (excluding BUC, windless condition) |
| INTERFACE SPECIFICATIONS | |
| Positioning Mode | Beacon/DVB carrier |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0-95% |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -50°C to +70°C |
| Windspeed Operational | ≤ 11m/s |
| Windspeed Survival | ≤ 18m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power Supply and RF cable |
| Default Cable Length | 10m |
| Product Weight | ≤ 26 kg (excluding BUC, LNB, packaging and accessories) |
| Reflector Material | Carbon Fiber |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
| Package Height Case 1 | 800 mm |
| Package Length Case 1 | 560 mm |
| Package Width Case 1 | 750 mm |
| Unit Package Dimensions | 560 mm x 750 mm x 800 mm |
| Unit Package Weight | 70 kg |
| Warranty | 1 year |
