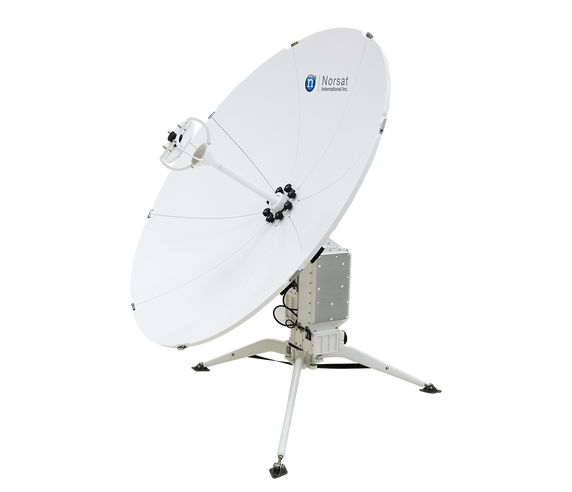

Norsat WFA120KA-NA WAYFARER 1.2m Ka-Band Auto Flyaway Antenna

Name: Norsat WFA120KA-NA WAYFARER 1.2m Ka-Band Auto Flyaway Antenna
Brand: Norsat International Inc.
SKU: WFA120KA-NA
Availability: OutOfStock

No reviews yet

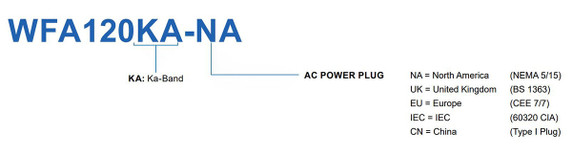

Product Code: WFA120KA-NA

Condition: New

Availability: YES

Weight: 52.00 KGS

Width: 170.00 (cm)

Height: 134.00 (cm)

Depth: 98.00 (cm)

Norsat WFA120KA-NA WAYFARER 1.2m Ka-Band Auto Flyaway Antenna Data Sheet

Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

The Norsat WAYFARER™ commercial 1.2m fly-away antenna is a fast deploying, easy-to-use, and compact SATCOM VSAT. This terminal is an excellent choice for commercial applications in various industries. fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.

KEY SPECIFICATIONS
Product Family	WAYFARER - Flyaway
Band	Ka-Band
Reflector Diameter	1.2 m
Acquisition & Tracking	Automatic
Transmit Frequency	Ka-Band: 29.00 - 31.00 GHz
Receive Frequency	Ka-Band: 18.70 - 21.20 GHz

ANTENNA SPECIFICATIONS
Polarization	Circular
Feed Configuration	Centre-feed
Cross-Polarization Isolation	≥ 23.5 dB
Elevation Range	10° - 90°
Azimuth Range	+/- 200°
Movement Overrides	Manual (Azimuth/Elevation)
Standard BUC Options	ELMTBKA012/ATOMBKA025/ATOMBKA050
Standard LNB Options	9000 Series LNB

RF SPECIFICATIONS
Movement Platform	Motorized Elevation over Azimuth
Tx Gain	46.4 dBi @ 29.0 GHz
Rx Gain	43.3 dBi @ 18.7 GHz

ELECTRICAL SPECIFICATIONS
Power Connector	NEMA 5/15
Power Requirements	AC110-230V 50/60Hz, rated 200W, 550W max

INTERFACE SPECIFICATIONS
Interfacility Link Cable	10 m

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	-30°C to +60°C (Antenna)
Temperature - Storage	-50 to +70°C
Weatherproofing	IP 65 (antenna only)
Windspeed - Operational	49 km/h
Windspeed - Survival	100 km/h
Humidity	0 - 95%

PHYSICAL SPECIFICATIONS
Number of cases	2 standard
Weight	≤52 Kg (2 Ruggedized cases)
