Norsat International Inc.

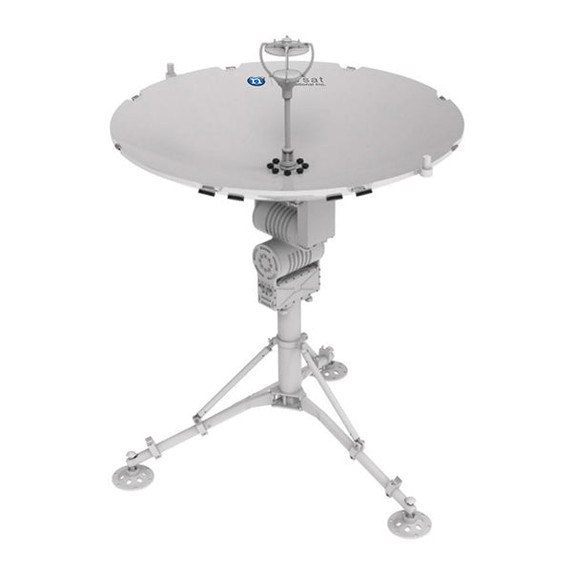

Norsat WFA100KARX WAYFARER 1.0m Ka-Band X-Y Flyaway Antenna - Ring Focus

Name: Norsat WFA100KARX WAYFARER 1.0m Ka-Band X-Y Flyaway Antenna - Ring Focus
Brand: Norsat International Inc.
SKU: WFA100KARX
Price: 77000 USD
Availability: InStock

No reviews yet

Product Code: WFA100KARX

Condition: New

Availability: 10 - 12 Weeks

Weight: 38.00 KGS

$77,000.00

KEY SPECIFICATIONS
Antenna Category	Flyaway
Band	Ka-Band
Of Onboard Los	Single-Band
ANTENNA SPECIFICATIONS
Antenna Aperture	1.0m
Antenna Type	Ring Focus
Axis Ratio	≤ 1.2 dB
Cross Polarization Isolation	≥ 23.2 dB (axial direction)
Motion Range X-Axis	± 90°
Motion Range Y-Axis	± 90°
Polarization	Circular
Sidelobe	First sidelobe ≤ -14 dB
Velocity X-Axis	0.1°/s - 5°/s
Velocity Y-Axis	0.1°/s - 5°/s
RF SPECIFICATIONS
Rx Frequency	24.25 - 27.5 GHz
Rx Gain	45.0dBi+20lg(f/24.25)dBi
Rx Interface	WR34
Rx VSWR	≤ 1.5
Tx Interface	WR34
ENVIRONMENTAL SPECIFICATIONS
Humidity	95% (20°C)
IP Rating	IP65
Temperature Operational	-40°C to +55°C
Temperature Storage	-50°C to +70°C
Windspeed Operational	≤ 11m/s
Windspeed Survival	≤ 20m/s
PHYSICAL SPECIFICATIONS
Color	White
Default Cable (Included)	Electrical power cables, RF cables
Default Cable Length	10m
Product Weight	≤ 38 kg (excluding power amplifier, LNB, packaging and accessories)
ADDITIONAL INFORMATION
Country Of Origin	Made in China
ECCN Number	EAR99
Ex Works	Hong Kong
Harmonized System Code	8529109090
Warranty	1 year
