Norsat International Inc.

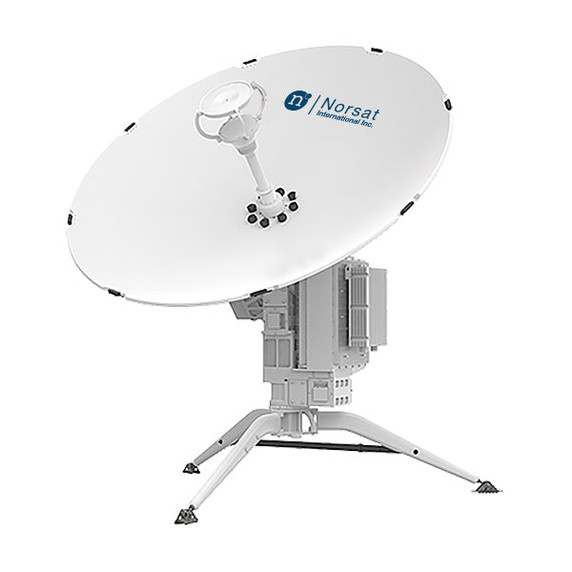

Norsat WFA100KAR WAYFARER 1.0m Ka-Band Auto Flyaway Antenna - Ring Focus
Product Code:
WFA100KAR
Condition:
New
Availability:
10 - 12 Weeks
Weight:
26.00 KGS
$53,625.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.0m |
| Antenna Category | Auto Flyaway |
| Band | Ka-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Axis Ratio | ≤ 1.5dB |
| Azimuth Angle | ± 200° |
| Azimuth Velocity | 0.1° /S ～3° /S |
| Elevation Angle | 10° - 90° |
| Elevation Veolcity | 0.1° /S ～3° /S |
| Initial Auto Acquisition Time | ≤ 3 min |
| Polarization | Circular |
| Polarization Range | ± 90° |
| Polarization Velocity | 1° /S |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | 85 dB |
| Port Isolation Tx-Rx | 35 dB |
| Power Capacity | 100 W |
| Rx Frequency | 19.20 - 20.20 GHz |
| Rx Gain | ≥ 43.8dBi+20lg(f/20GHz)dBi |
| Rx Interface | WR42 |
| Rx VSWR | ≤ 1.5：1 |
| Tx Frequency | 29.50 - 31.00 GHz |
| Tx Gain | ≥ 46.9dBi+20lg(f/30GHz)dBi |
| Tx Interface | WR28 |
| Tx VSWR | ≤ 1.5：1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220VAC 50Hz, ≤ 80W (excluding BUC, windless condition) |
| INTERFACE SPECIFICATIONS | |
| Positioning Mode | Beacon/DVB carrier |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% (20℃) |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 °C to +70°C |
| Windspeed Operational | ≤ 11m/s |
| Windspeed Survival | ≤ 18m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power Supply and RF cable |
| Default Cable Length | 10m |
| Product Weight | ≤ 26 kg (excluding BUC, LNB, packaging and accessories) |
| RMS | 0.3dB |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
| Warranty | 1 year |
