Norsat International Inc.

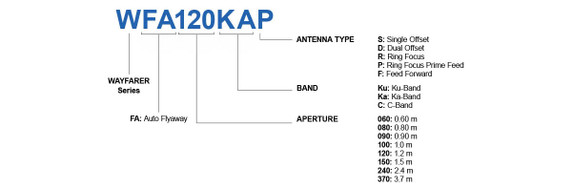

Norsat WFA080KUR WAYFARER 0.8m Ku-Band Auto Flyaway Antenna - Ring Focus
Product Code:
WFA080KUR
Condition:
New
Availability:
10 - 12 Weeks
Weight:
18.50 KGS
$44,550.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.8m |
| Antenna Category | Auto Flyaway |
| Band | Ku-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Azimuth Angle | ± 180° |
| Cross Polarization Isolation | ≥35 dB |
| Elevation Angle | 10° - 90° |
| Initial Auto Acquisition Time | ≤ 3 min |
| Polarization | Linear |
| Polarization Range | ± 90° |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | 85 dB |
| Port Isolation Tx-Rx | 40 dB |
| Power Capacity | 100 W |
| Rx Frequency | 10.95 - 12.75 GHz |
| Rx Gain | ≥ 37.6dBi+20lg(f/12.5GHz)dBi |
| Rx Interface | WR75 |
| Rx VSWR | ≤ 1.5：1 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | ≥ 38.7dBi+20lg(f/14.25GHz)dBi |
| Tx Interface | WR75 |
| Tx VSWR | ≤ 1.5：1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% (20℃) |
| IP Rating | IP 65 |
| Temperature Operational | -25°C to +50°C |
| Temperature Storage | -30°C to +55°C |
| Windspeed Operational | ≤ 11m/s |
| Windspeed Survival | ≤ 18m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power Supply and RF cable |
| Default Cable Length | 10m |
| Product Weight | ≤ 18.5 kg (excluding BUC, LNB, packaging and accessories, etc.) |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
| Warranty | 1 year |
