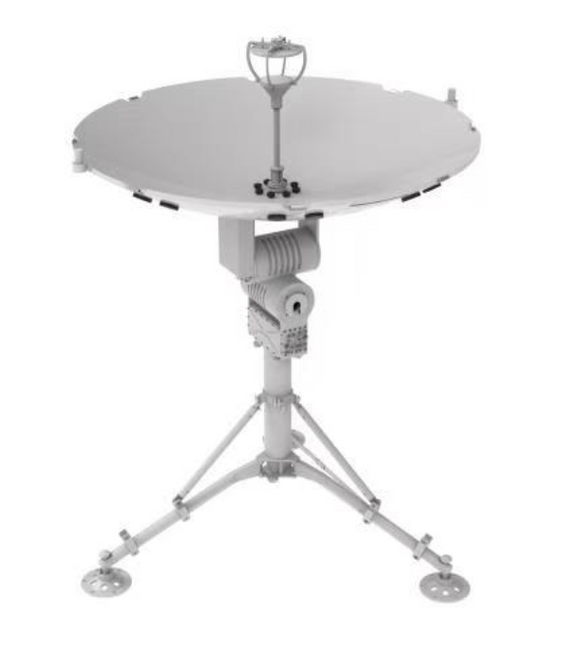

Norsat WFA-100235 WAYFARER 1.2m Ka-Band Auto X/Y Flyaway Antenna
Product Code:
WFA-100235
Condition:
New
Availability:
10 - 12 Weeks
Weight:
47.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Positive feed ring focus |
| Axial Ratio | ≤ 1.5 (axial) |
| Feed Interface | Tx: WR28; Rx: WR42 |
| Polarization | Circular (with manual switching of polarization) |
| Sidelobe | First sidelobe: ≤ -14 dB |
| X Axis Range | ± 90° |
| X Axis Speed | 0.1°/s to 5°/s |
| Y Axis Range | ± 90° |
| Y Axis Speed | 0.1°/s to 5°/s |
| RF SPECIFICATIONS | |
| Movement Platform | Motorized X-Y Antenna |
| Rx Frequency | 17.70 - 21.20 GHz |
| Rx Gain | 44.8+20lg(f/19.45) dBi |
| Rx VSWR | 1.5 : 1 max. |
| Tx Frequency | 27.5 - 31.0 GHz |
| Tx Gain | 48.3+20lg(f/29.25) dBi |
| Tx Rx Isolation Port Isolation | Transceiver: ≥ 85 dB (field amplifier input) Transmit and Receive: ≥ 40 dB (power amplifier output port) |
| Tx VSWR | 1.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | 220V AC 50Hz |
| Power Consumption | 1000W max. |
| INTERFACE SPECIFICATIONS | |
| AC Input Interface | Europe (CEE 7/7) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% (20°C) |
| Temperature Operational | -40 to +55°C |
| Temperature Storage | -50 to +70°C |
| Weatherproofing | IP 65 (antenna only) |
| Wind Load Operational | 11 m/s (with ballast) |
| Wind Load Survival | 20 m/s (with ballast) |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Motor Type | DC Servo |
| Product Weight | ≤ 47 kg (excluding BUC, LNB, packaging and accessories) |
| Sensors | Dual GPS direction finder, inclinometer |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | 5A991.h |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517700000 |
