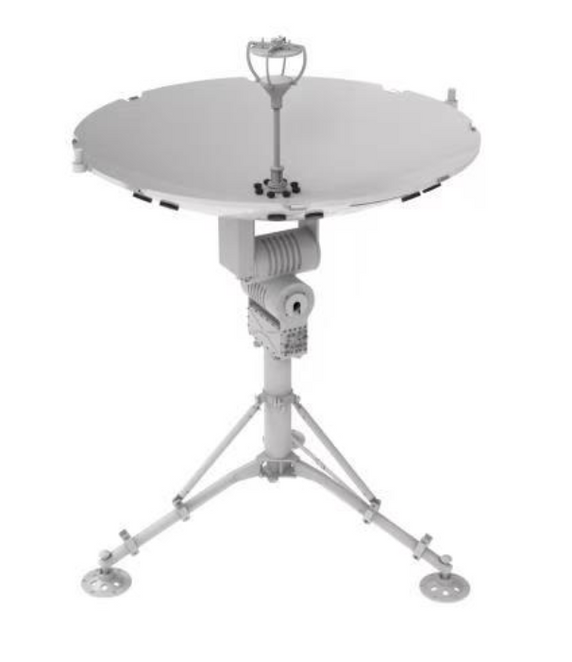

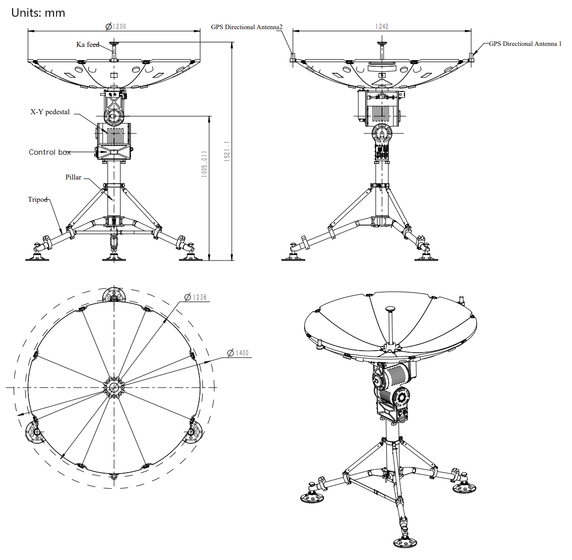

Norsat WFA-100224 1.2m Ku-Band Auto X/Y Flyaway Antenna
Product Code:
WFA-100224
Condition:
New
Availability:
10 - 12 Weeks
Weight:
38.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Axial Ratio | ≤ 1.5 (axial) |
| Feed Interface | Tx: WR75; Rx: WR75 |
| Polarization | Circular |
| Sidelobe | First sidelobe: ≤ -14 dB |
| X Axis Range | ± 90° |
| X Axis Speed | 0.1°/s to 5°/s |
| Y Axis Range | ± 90° |
| Y Axis Speed | 0.1°/s to 5°/s |
| RF SPECIFICATIONS | |
| Movement Platform | Motorized X-Y Antenna |
| Rx Frequency | 10.70 - 12.75 GHz |
| Rx Gain | ≥41.5+20lg(f/12.50) dBi |
| Rx VSWR | 1.5 : 1 max. |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | ≥42.8+20lg(f/14.25) dBi |
| Tx Rx Isolation Port Isolation | Transceiver: ≥ 40 dB (field amplifier input) Receiver: ≥ 90 dB (power amplifier output port) |
| Tx VSWR | 1.5 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| AC Input Interface | North America (NEMA 5/15) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% (20°C) |
| Temperature Operational | -40 to +55°C |
| Temperature Storage | -50 to +70°C |
| Weatherproofing | IP 65 |
| Wind Load Operational | 11 m/s (with ballast) |
| Wind Load Survival | 20 m/s (with ballast) |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Product Weight | ≤ 38 kg (excluding BUC, LNB, packaging and accessories) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517700000 |
