Norsat International Inc.

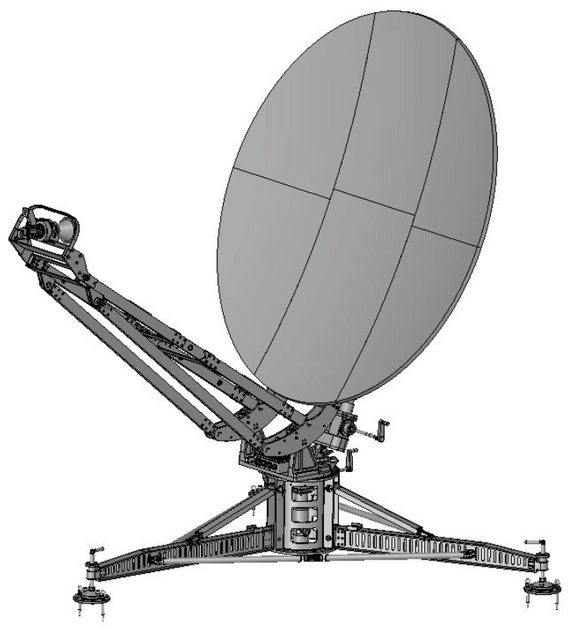

Norsat WFA-100217 1.8m Auto Flyaway Antenna - Ring Focus
Product Code:
WFA-100217
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.8 m |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Auto Acquistion Time | ≤ 3 min |
| Azimuth Range | ±200° |
| Azimuth Speed | 0.1°/s to 3°/s |
| Cross Polarization Isolation | 35 dB |
| Elevation Range | 10° to 90° |
| Elevation Speed | 0.1°/s to 1°/s |
| Feed Configuration | Single Offset |
| Feed Interface | WR75 |
| Pointing Accuracy | ≤ 0.3 dB (RMS) |
| Polarization | Linear |
| Polarization Range | ± 90° |
| Polarization Speed | 1°/s |
| Sidelobe | First sidelobe ≤ -14 dB |
| Tracking Mode | Beacon/DVB carrier |
| RF SPECIFICATIONS | |
| Movement Platform | Motorized Elevation over Azimuth |
| Rx Frequency | 11.45 - 11.70 GHz |
| Rx Gain | 44.2+20log(f/11.58) dBi |
| Tx Frequency | 14.50 - 14.80 GHz |
| Tx Gain | 46.2+20log(f/14.65) dBi |
| Tx Rx Isolation Port Isolation | 85 dB |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | ≤ 800W (excluding BUC, windless condition) |
| Power Supply | 220VAC 50Hz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP65 |
| Temperature Operational | -20°C to +60°C |
| Temperature Storage | -30°C to +70°C |
| Wind Load Operational | 11 m/s (ballast weight) |
| Wind Load Survival | 18 m/s (ballast weight) |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Handheld Type | 1U control unit |
| Number Of Cases | 5 |
| Reflector Material | Carbon fiber |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.8 m |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Auto Acquistion Time | ≤ 3 min |
| Azimuth Range | ±200° |
| Azimuth Speed | 0.1°/s to 3°/s |
| Cross Polarization Isolation | 35 dB |
| Elevation Range | 10° to 90° |
| Elevation Speed | 0.1°/s to 1°/s |
| Feed Configuration | Single Offset |
| Feed Interface | WR75 |
| Pointing Accuracy | ≤ 0.3 dB (RMS) |
| Polarization | Linear |
| Polarization Range | ± 90° |
| Polarization Speed | 1°/s |
| Sidelobe | First sidelobe ≤ -14 dB |
| Tracking Mode | Beacon/DVB carrier |
| RF SPECIFICATIONS | |
| Movement Platform | Motorized Elevation over Azimuth |
| Rx Frequency | 11.45 - 11.70 GHz |
| Rx Gain | 44.2+20log(f/11.58) dBi |
| Tx Frequency | 14.50 - 14.80 GHz |
| Tx Gain | 46.2+20log(f/14.65) dBi |
| Tx Rx Isolation Port Isolation | 85 dB |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | ≤ 800W (excluding BUC, windless condition) |
| Power Supply | 220VAC 50Hz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP65 |
| Temperature Operational | -20°C to +60°C |
| Temperature Storage | -30°C to +70°C |
| Wind Load Operational | 11 m/s (ballast weight) |
| Wind Load Survival | 18 m/s (ballast weight) |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Handheld Type | 1U control unit |
| Number Of Cases | 5 |
| Reflector Material | Carbon fiber |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Warranty | 1 year |
