Norsat International Inc.

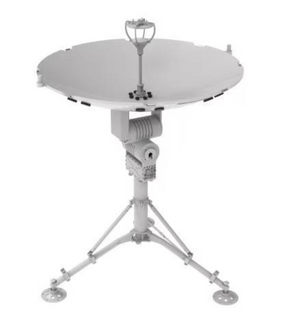

Norsat WFA-100213 1.2m Ka-Band Auto Flyaway Antenna - Ring Focus
Product Code:
WFA-100213
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Auto Acquisition | Initial acquisition satellite time: ≤ 3 min |
| Axial Ratio | 1.0 dB |
| Azimuth Range | ± 200° |
| Azimuth Speed | 0.1°/s to 3°/s |
| Elevation Range | 10° to 90° |
| Elevation Speed | 0.1°/s to 3°/s |
| Pointing Accuracy | ≤ 0.5 dB (RMS) |
| Polarization | Circular |
| Sidelobe | First sidelobe -14 dB |
| Tracking Mode | Beacon/DVB Carrier |
| RF SPECIFICATIONS | |
| Rx Frequency | 19.2 - 21.2 GHz |
| Rx Gain | 45.0+20lg(f/20) dBi |
| Rx Interface | WR42 |
| Tx Frequency | 29.0 - 31.0 GHz |
| Tx Gain | 48.5+20lg(f/30) dBi |
| Tx Interface | WR28 |
| Tx Rx Isolation Port Isolation | 85 dB |
| VSWR | 1.5 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | < 150W (Excluding BUC at windless condition) |
| Power Supply | 220 VAC 50 Hz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP 65 |
| Temperature Operational | -20 to +55°C |
| Temperature Storage | -30°C to +70°C |
| Windspeed Operational | 11 m/s (Ballast Weight) |
| Windspeed Survival | 18 m/s (Ballast Weight) |
| PHYSICAL SPECIFICATIONS | |
| Reflector Material | Carbon fiber |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517710000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Ring Focus |
| Auto Acquisition | Initial acquisition satellite time: ≤ 3 min |
| Axial Ratio | 1.0 dB |
| Azimuth Range | ± 200° |
| Azimuth Speed | 0.1°/s to 3°/s |
| Elevation Range | 10° to 90° |
| Elevation Speed | 0.1°/s to 3°/s |
| Pointing Accuracy | ≤ 0.5 dB (RMS) |
| Polarization | Circular |
| Sidelobe | First sidelobe -14 dB |
| Tracking Mode | Beacon/DVB Carrier |
| RF SPECIFICATIONS | |
| Rx Frequency | 19.2 - 21.2 GHz |
| Rx Gain | 45.0+20lg(f/20) dBi |
| Rx Interface | WR42 |
| Tx Frequency | 29.0 - 31.0 GHz |
| Tx Gain | 48.5+20lg(f/30) dBi |
| Tx Interface | WR28 |
| Tx Rx Isolation Port Isolation | 85 dB |
| VSWR | 1.5 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | < 150W (Excluding BUC at windless condition) |
| Power Supply | 220 VAC 50 Hz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP 65 |
| Temperature Operational | -20 to +55°C |
| Temperature Storage | -30°C to +70°C |
| Windspeed Operational | 11 m/s (Ballast Weight) |
| Windspeed Survival | 18 m/s (Ballast Weight) |
| PHYSICAL SPECIFICATIONS | |
| Reflector Material | Carbon fiber |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517710000 |
