Norsat International Inc.

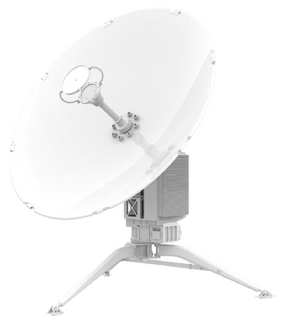

Norsat WFA-100174 1.2m Low Ku-Band Auto Flyaway Antenna
Product Code:
WFA-100174
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Automatic |
| Antenna Aperture | 1.2m |
| Band | Low Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Azimuth Range | ± 200° |
| Cross Polarization Isolation | ≥35 dB |
| Elevation Range | 10° to 90° |
| Feed Configuration | Center |
| Feed Interface | WR75 |
| Polarization | Linear |
| Polarization Range | ± 90° |
| Sidelobe | -14 dB (First sidelobe) |
| RF SPECIFICATIONS | |
| Movement Platform | Motorized Elevation over Azimuth |
| Rx Frequency | 10.95 - 11.70 GHz |
| Rx Gain | ≥ 40.2 dBi @ 10.7 GHz ≥ 41.0 dBi @ 12.5 GHz ≥ 41.7 dBi @ 34.1 GHz |
| Rx Return Loss | ≥ 16 dB |
| Tx Frequency | 12.75 - 13.25 GHz |
| Tx Gain | ≥ 42.2 dBi @ 13.75 GHz ≥ 42.4 dBi @ 14.125 GHz ≥ 42.6 dBi @ 14.50 GHz |
| Tx Return Loss | ≥ 16 dB |
| Tx Rx Isolation Port Isolation | Rx: ≥ 40 dB Tx: ≥ 85 dB |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | AC110-230V 50/60Hz, rated 200W, 550W max |
| INTERFACE SPECIFICATIONS | |
| AC Input Interface | Europe (CEE 7/7) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| Temperature Operational | -30 to +60°C |
| Weatherproofing | IP 65 (antenna only) |
| Wind Load Operational | 36 km/h |
| Wind Load Survival | 61 km/h |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Number Of Cases | 2 standard |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Canada |
| Harmonized System Code | 8517690000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Automatic |
| Antenna Aperture | 1.2m |
| Band | Low Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Azimuth Range | ± 200° |
| Cross Polarization Isolation | ≥35 dB |
| Elevation Range | 10° to 90° |
| Feed Configuration | Center |
| Feed Interface | WR75 |
| Polarization | Linear |
| Polarization Range | ± 90° |
| Sidelobe | -14 dB (First sidelobe) |
| RF SPECIFICATIONS | |
| Movement Platform | Motorized Elevation over Azimuth |
| Rx Frequency | 10.95 - 11.70 GHz |
| Rx Gain | ≥ 40.2 dBi @ 10.7 GHz ≥ 41.0 dBi @ 12.5 GHz ≥ 41.7 dBi @ 34.1 GHz |
| Rx Return Loss | ≥ 16 dB |
| Tx Frequency | 12.75 - 13.25 GHz |
| Tx Gain | ≥ 42.2 dBi @ 13.75 GHz ≥ 42.4 dBi @ 14.125 GHz ≥ 42.6 dBi @ 14.50 GHz |
| Tx Return Loss | ≥ 16 dB |
| Tx Rx Isolation Port Isolation | Rx: ≥ 40 dB Tx: ≥ 85 dB |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | AC110-230V 50/60Hz, rated 200W, 550W max |
| INTERFACE SPECIFICATIONS | |
| AC Input Interface | Europe (CEE 7/7) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| Temperature Operational | -30 to +60°C |
| Weatherproofing | IP 65 (antenna only) |
| Wind Load Operational | 36 km/h |
| Wind Load Survival | 61 km/h |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Number Of Cases | 2 standard |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Canada |
| Harmonized System Code | 8517690000 |
