Norsat International Inc.

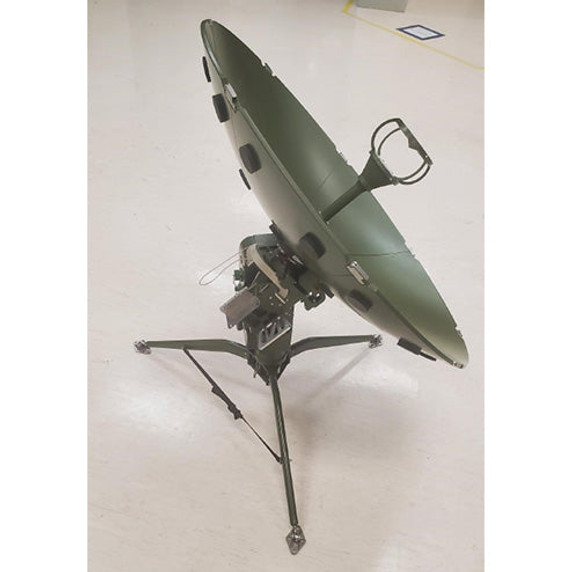

Norsat WF-100134 WAYFARER 1.2m Ku-Band Auto Flyaway Antenna - DEMO
Product Code:
WF-100134
Condition:
New
Availability:
1 pcs
Weight:
0.00 KGS
$24,407.52
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Automatic |
| Antenna Aperture | 1.2m |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Azimuth Range | +/- 200° |
| Cross Polarization Isolation | ≥35 dB |
| Elevation Range | 10° - 90° |
| Feed Configuration | Centre-feed |
| Feed Interface | WR75 |
| Polarization | Linear |
| Sidelobe | First sidelobe -14 dB |
| RF SPECIFICATIONS | |
| Phase Noise 0.1Khz Offset Max | -125 dBc/Hz max. |
| Port Isolation | Tx: ≥ 85 dB; Rx: ≥ 40 dB |
| Rx Frequency | 10.70 - 12.75 GHz |
| Rx Gain | 41.5dBi+ 20log(f/11.85)dBi |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 42.8+ 20log(f/14.125)dBi |
| Tx Rx Isolation Port Isolation | Tx: ≥ 85 dB; Rx: ≥ 40 dB |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220V AC 50Hz to 24VDC, rated 200W, 550W max |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| Temperature Operational | -30°C to +60°C (Antenna) |
| Wind Load Operational | 36 km/h |
| Wind Load Survival | 61 km/h |
| PHYSICAL SPECIFICATIONS | |
| Number Of Cases | 2 Soft Backpacks: - Backpack 1: Size: 84.5 cm (L) x 62 cm (W) x 49 cm (H); Weight: ≤44Kg - Backpack 2: Size: 84.5 cm (L) x 62 cm (W) x 49 cm (H); Weight: ≤22Kg |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 135 mm x 68 mm x 48 mm |
| Unit Package Height | 48 mm |
| Unit Package Length | 135 mm |
| Unit Package Weight | 0.48 kg |
| Unit Package Width | 68 mm |
| Warranty | 1 year |
5 customers are viewing this product
Details
The Norsat WAYFARER™ commercial 1.2m fly-away antenna is a fast deploying, easy-to-use, and compact SATCOM VSAT. This terminal is an excellent choice for commercial applications in various industries.
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Automatic |
| Antenna Aperture | 1.2m |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Azimuth Range | +/- 200° |
| Cross Polarization Isolation | ≥35 dB |
| Elevation Range | 10° - 90° |
| Feed Configuration | Centre-feed |
| Feed Interface | WR75 |
| Polarization | Linear |
| Sidelobe | First sidelobe -14 dB |
| RF SPECIFICATIONS | |
| Phase Noise 0.1Khz Offset Max | -125 dBc/Hz max. |
| Port Isolation | Tx: ≥ 85 dB; Rx: ≥ 40 dB |
| Rx Frequency | 10.70 - 12.75 GHz |
| Rx Gain | 41.5dBi+ 20log(f/11.85)dBi |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 42.8+ 20log(f/14.125)dBi |
| Tx Rx Isolation Port Isolation | Tx: ≥ 85 dB; Rx: ≥ 40 dB |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220V AC 50Hz to 24VDC, rated 200W, 550W max |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| Temperature Operational | -30°C to +60°C (Antenna) |
| Wind Load Operational | 36 km/h |
| Wind Load Survival | 61 km/h |
| PHYSICAL SPECIFICATIONS | |
| Number Of Cases | 2 Soft Backpacks: - Backpack 1: Size: 84.5 cm (L) x 62 cm (W) x 49 cm (H); Weight: ≤44Kg - Backpack 2: Size: 84.5 cm (L) x 62 cm (W) x 49 cm (H); Weight: ≤22Kg |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 135 mm x 68 mm x 48 mm |
| Unit Package Height | 48 mm |
| Unit Package Length | 135 mm |
| Unit Package Weight | 0.48 kg |
| Unit Package Width | 68 mm |
| Warranty | 1 year |
