Norsat International Inc.

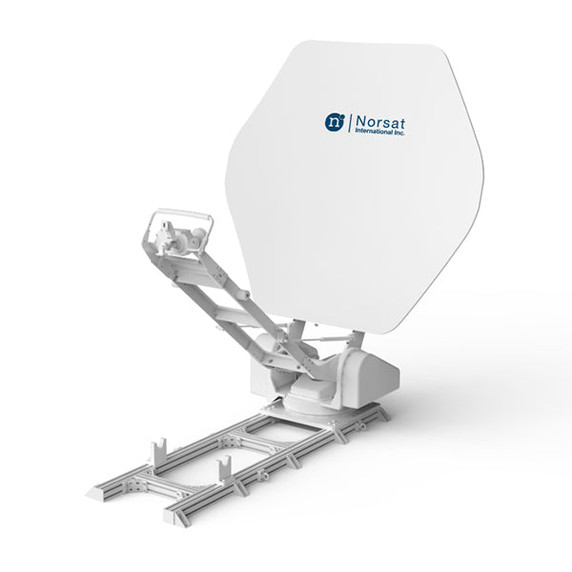

Norsat WDA150KUS WAYFARER 1.5m Ku-Band Driveaway Antenna - Single Offset
Product Code:
WDA150KUS
Condition:
New
Availability:
10 - 12 Weeks
Weight:
145.00 KGS
$64,625.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.5m |
| Antenna Category | Drive Away |
| Band | Ku-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Single Offset |
| Azimuth Angle | ± 200° |
| Cross Polarization Isolation | ≥35 dB |
| Elevation Angle | 10° - 85° |
| Initial Auto Acquisition Time | ≤ 3min |
| Polarization | Linear |
| Polarization Range | ± 90° |
| Sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | 85 dB |
| Port Isolation Tx-Rx | 40 dB |
| Power Capacity | 100 W |
| Rx Frequency | 10.7 - 12.75 GHz |
| Rx Gain | ≥ 43.4dBi+20lg(f/12.5GHz)dBi |
| Rx Interface | WR75 |
| Rx VSWR | ≤ 1.3：1 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | ≥ 44.5dBi+20lg(f/14.25GHz)dBi |
| Tx Interface | WR75 |
| Tx VSWR | ≤ 1.3：1 |
| INTERFACE SPECIFICATIONS | |
| Positioning Mode | GPS/BD |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% (20℃) |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -50 °C to +70°C |
| Windspeed Operational | ≤ 20m/s |
| Windspeed Survival | ≤ 25m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | Power supply, RF cable and Communication Cable |
| Default Cable Length | 10m |
| Product Weight | ≤ 145 kg (excluding power amplifier, LNB, packaging and accessories, etc.) |
| RMS | 0.3dB |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
| Warranty | 1 year |
