Norsat International Inc.

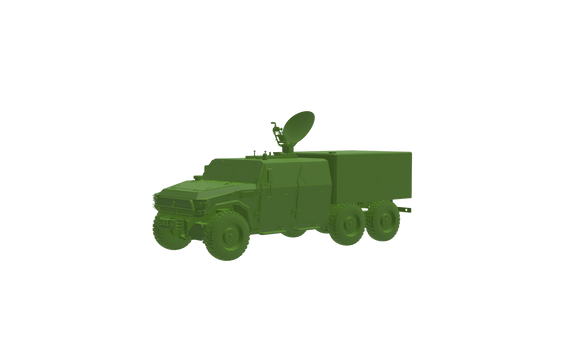

Norsat WDA090KAS WAYFARER 0.9m Ka-Band Driveaway Antenna - Single Offset

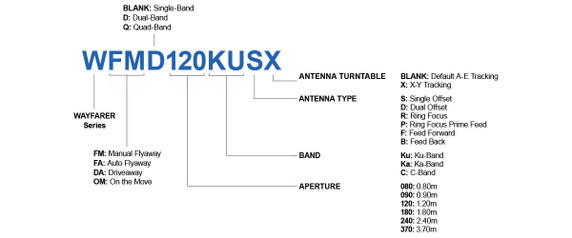

Product Code:
WDA090KAS
Condition:
New
Availability:
10 - 12 Weeks
Weight:
65.00 KGS
Width:
100.00
(cm)
Height:
165.00
(cm)
Depth:
211.00
(cm)
$42,625.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.9m |
| Antenna Category | Drive Away |
| Band | Ka-Band |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Single Offset |
| Axis Ratio | ≤ 1.0 dB |
| Azimuth Angle | ±220° |
| Azimuth Velocity | 0.1～3°/s |
| Blockage Recovery Time | ≤1min |
| Elevation Angle | 10°-90° |
| Elevation Veolcity | 0.1～3°/s |
| Initial Auto Acquisition Time | ≤3min |
| Polarization | Circular |
| Polarization Range | ±90° |
| Polarization Velocity | 0.1°/s～3°/s |
| Sidelobe | ≤-14dB |
| RF SPECIFICATIONS | |
| Port Isolation Rx-Tx | ≥85dB |
| Port Isolation Tx-Rx | ≥40dB |
| Power Capacity | ≤500 W |
| Rx Frequency | 10.95 - 12.75 GHz |
| Rx Gain | 38.7+20lg(f/12.5)dBi |
| Rx Interface | WR42 |
| Rx VSWR | ≤ 1.5 : 1 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 39.8+20lg(f/14.25)dBi |
| Tx Interface | WR28 |
| Tx VSWR | ≤ 1.5 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95%（20°C） |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50°C to +70°C |
| Windspeed Operational | 13m/s |
| Windspeed Survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Default Cable (Included) | 1. Chassis - turntable: RF cable, power supply, power amplifier communication, power amplifier power supply (8 m). 2. Chassis: Power supply (3 m), network cable (5 m) |
| Number Of Cases | 1 |
| Packed By | wood crate and aluminium shipping case |
| Product Height | 1650 mm |
| Product Length | 2110 mm |
| Product Weight | 65 kg |
| Product Width | 1000 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Package Height Case 1 | 650 mm |
| Package Height Case 2 | 650 mm |
| Package Length Case 1 | 1500 mm |
| Package Length Case 2 | 1500 mm |
| Package Weight Case 1 | 115 kg |
| Package Width Case 1 | 1300 mm |
| Package Width Case 2 | 1300 mm |
| Unit Package Dimensions | 1500*1300*650 (mm) |
| Unit Package Weight | 115 kg |
| Warranty | 1 year |
