Norsat International Inc.

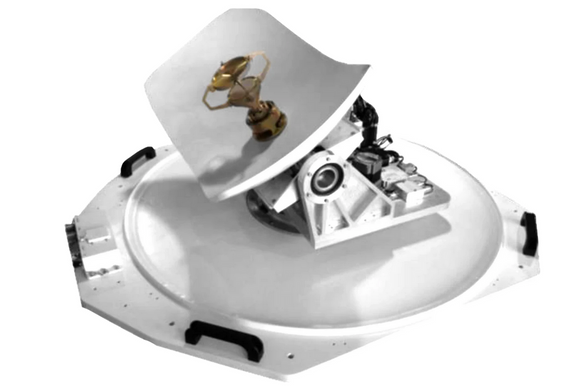

Norsat WCM055KU-EU WAYFARER 0.55m Ku-Band Communications-on-the-Move Terminal
Product Code:
WCM055KU-EU
Condition:
New
Availability:
10 - 12 Weeks
Weight:
52.00 KGS
Width:
96.50
(cm)
Height:
49.50
(cm)
Depth:
106.90
(cm)
$99,004.00
NORSAT’s solution for uncompromising performance in on-the-move military and security applications is in the form of our compact, high performing COTM terminal.
| KEY SPECIFICATIONS | |
| Antenna Category | On the Move |
| Band | Ku-Band |
| Reflector Material | Carbon fiber |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Low profile parabolic |
| Azimuth Acceleration | ≥ 200°/s² |
| Azimuth Angle | 360˚ continuous |
| Azimuth Velocity | ≤ 60°/s, |
| Blockage Recovery Time | ≤ 5s; Blockage 20min |
| Cross Polarization Isolation | ≥30 dB |
| Elevation Acceleration | ≥ 200°/s² |
| Elevation Angle | 0˚ to +90˚ |
| Elevation Veolcity | ≤ 60°/s, |
| Equivalent Aperture | 0.5m |
| External I/O | RS-232C, Ethernet |
| Initial Auto Acquisition Time | ≤ 3min |
| Operating Platform | 2 - Axis |
| Polarization | Linear |
| Polarization Range | Automatic (-90˚ to +90˚) |
| Polarization Velocity | ≤ 40°/s |
| Sidelobe | ≤ -14 dB |
| Standard BUC Options | 16W,20W,40W, 80W (GaN and GaAs) |
| Standard LNB Options | 1000HU Series LNB with Type F (75 Ohm) Connector |
| RF SPECIFICATIONS | |
| G/T | 11.0 dB/K @ 12.50 GHz |
| Port Isolation Rx-Tx | 85 dB |
| Port Isolation Tx-Rx | 40 dB |
| Power Capacity | 100 W |
| Radome Insertion Loss | ≤ 0.3 dB |
| Rx Frequency | 10.70 - 12.75 GHz |
| Rx Gain | 34+20log(f/12.5) dBi |
| Rx Interface | WR75 |
| Rx VSWR | 1.5 : 1 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 35+20log(f/14.25) dBi |
| Tx Interface | WR75 |
| Tx Rx Isolation Port Isolation | 85 dB |
| Tx VSWR | 1.5 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220 VAC 50 Hz, ≤300W (excluding BUC) |
| INTERFACE SPECIFICATIONS | |
| Interfacility Link Cable | IFL Cable (10m) |
| Positioning Mode | GPS+Beidou |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 95% |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -50 °C to +70°C |
| Windspeed Operational | 21m/s |
| Windspeed Survival | 35 m/s |
| PHYSICAL SPECIFICATIONS | |
| ACU Size | 19” Rack 1U size |
| Color | White |
| Default Cable (Included) | Power supply, RF cable and Communication Cable |
| Default Cable Length | 10m |
| Number Of Cases | 1 Wooden Case |
| Packed By | Wooden Case |
| Product Height | 495 mm |
| Product Length | 1069 mm |
| Product Weight | ≤ 52 kg (excluding BUC, LNB, case, packaging and accessories etc) |
| Product Width | 965 mm |
| RMS | ≤ 0.5 dB |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 1270 x 1320 x 730 mm |
| Unit Package Weight | 104 kg |
| Warranty | 1 year |
