Norsat WCM055KUD-EU WAYFARER 0.55m Ku-Band Communications-on-the-Move Terminal
$101,383.00
Zoom the image with the mouse
Norsat International Inc.

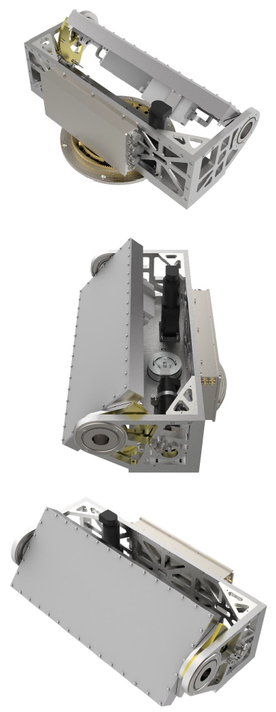

Norsat WCM-100007 0.55m Ku-Band Communications-on-the-Move Terminal
Product Code:
WCM-100007
Condition:
New
Availability:
10 - 12 Weeks
Weight:
45.00 KGS
Width:
96.00
(cm)
Height:
30.00
(cm)
Depth:
104.50
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.55m |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Acceleration | Azimuth: ≥ 200°/s² Elevation: ≥ 200°/s² |
| ACU Size | 19” Rack 1U size |
| Antenna Input Power | 220 VAC, 50 Hz |
| Antenna Type | Microstrip Plates |
| Auto Acquisition | Initial acquisition satellite time: ≤ 120s |
| Axial Ratio | ≤ 1.5 dB |
| Elevation Angle | 10˚ to +90˚ |
| Operating Platform | 2 - Axis |
| Polarization | Circular |
| Positioning Mode | GPS+BD |
| Satellite Time | Blockage recovery time: ≤ 5s Blockage: ≥ 20min |
| Sidelobe | Azimuth: ≤ -14 dB Elevation: ≤ -12 dB |
| Skew Control | 360˚ continous |
| Starway | Beacon/DVB |
| Tracking Accuracy | ≤ 0.5 dB (RMS) |
| Tracking Speed | Azimuth: ≥ 60°/s Elevation: ≥ 60°/s |
| RF SPECIFICATIONS | |
| Rx Frequency | 19.6 - 21.2 GHz |
| Rx Gain | ≥37.4+20lg(f/20.4)dBi |
| Rx Interface | WR42 |
| Rx Tx Isolation Port Isolation | 40 dB min. |
| Rx VSWR | 1.5 : 1 max. |
| Tx Frequency | 29.4 - 31.0 GHz |
| Tx Gain | ≥40.9+20lg(f/30.2) dBi |
| Tx Interface | WR28 |
| Tx Rx Isolation Port Isolation | 85 dB min. |
| Tx VSWR | 1.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 200W (Excluding BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% (40℃) |
| IP Rating | IP 65 |
| Temperature Operational | -40 to +55°C |
| Temperature Storage | -55 to +70°C |
| Wind Load Operational | 21m/s |
| Wind Load Survival | 35 m/s |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 300 mm (motion envelope) |
| Product Length | 1045 mm (motion envelope) |
| Product Weight | ≤ 45 kg (excluding BUC, LNB, packaging and accessories) |
| Product Width | 960 mm (motion envelope) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517710000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.55m |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Acceleration | Azimuth: ≥ 200°/s² Elevation: ≥ 200°/s² |
| ACU Size | 19” Rack 1U size |
| Antenna Input Power | 220 VAC, 50 Hz |
| Antenna Type | Microstrip Plates |
| Auto Acquisition | Initial acquisition satellite time: ≤ 120s |
| Axial Ratio | ≤ 1.5 dB |
| Elevation Angle | 10˚ to +90˚ |
| Operating Platform | 2 - Axis |
| Polarization | Circular |
| Positioning Mode | GPS+BD |
| Satellite Time | Blockage recovery time: ≤ 5s Blockage: ≥ 20min |
| Sidelobe | Azimuth: ≤ -14 dB Elevation: ≤ -12 dB |
| Skew Control | 360˚ continous |
| Starway | Beacon/DVB |
| Tracking Accuracy | ≤ 0.5 dB (RMS) |
| Tracking Speed | Azimuth: ≥ 60°/s Elevation: ≥ 60°/s |
| RF SPECIFICATIONS | |
| Rx Frequency | 19.6 - 21.2 GHz |
| Rx Gain | ≥37.4+20lg(f/20.4)dBi |
| Rx Interface | WR42 |
| Rx Tx Isolation Port Isolation | 40 dB min. |
| Rx VSWR | 1.5 : 1 max. |
| Tx Frequency | 29.4 - 31.0 GHz |
| Tx Gain | ≥40.9+20lg(f/30.2) dBi |
| Tx Interface | WR28 |
| Tx Rx Isolation Port Isolation | 85 dB min. |
| Tx VSWR | 1.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 200W (Excluding BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95% (40℃) |
| IP Rating | IP 65 |
| Temperature Operational | -40 to +55°C |
| Temperature Storage | -55 to +70°C |
| Wind Load Operational | 21m/s |
| Wind Load Survival | 35 m/s |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 300 mm (motion envelope) |
| Product Length | 1045 mm (motion envelope) |
| Product Weight | ≤ 45 kg (excluding BUC, LNB, packaging and accessories) |
| Product Width | 960 mm (motion envelope) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517710000 |
