Norsat International Inc.

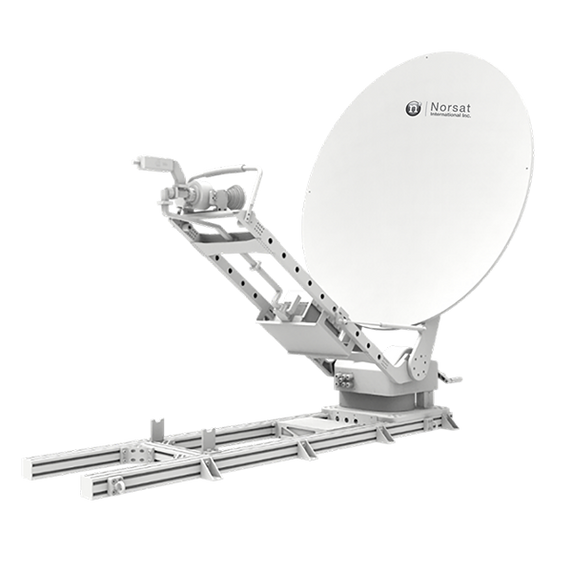

Norsat WAYFARER 1.8m Ku-Band Driveaway Antenna-IEC
Product Code:
WDA180KU-IEC
Availability:
YES
Weight:
140.00 KGS
Width:
249.00
(cm)
Height:
180.00
(cm)
Depth:
49.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The WAYFARER 1.8m Driveaway is Norsat’s solution for reliable and easy-to-deploy mobile communications. The solid, low weight, and low height reflector mount deploys easily for fast and reliable satellite acquisition and tracking. Whether mounted on an emergency vehicular command center or a mobile broadcast van – count on Norsat’s WAYFARER™ drive-away terminals for drive-away broadband-level communications capability.
| KEY SPECIFICATIONS | |
| Product Family | WAYFARER - Driveaway |
| Band | Ku-Band |
| Reflector Diameter | 1.8 m |
| Acquisition & Tracking | Automatic |
| Transmit Frequency | Ku-Band: 13.75 - 14.50 GHz |
| Receive Frequency | Ku Band: 10.70 - 12.75 GHz |
| ANTENNA SPECIFICATIONS | |
| Polarization | Linear +/- 95 ° |
| Feed Configuration | Offset-feed |
| Cross-Polarization Isolation | ≥35 dB |
| Elevation Range | 10° - 90° |
| Azimuth Range | +/- 200° |
| Movement Overrides | Manual (Azimuth/Elevation) |
| Standard BUC Options | 8W, 20W, 40W, 80W |
| Standard LNB Options | 1000H or HS1000 |
| RF SPECIFICATIONS | |
| Movement Platform | Motorized Elevation over Azimuth |
| Tx Gain | 46.3+20log(f/14.25)dBi |
| Rx Gain | 45.0+20log(f/12.5)dBi |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | DC24 10A |
| INTERFACE SPECIFICATIONS | |
| Interfacility Link Cable | 10 m |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -30°C to +55°C (Antenna) |
| Weatherproofing | IP65 |
| Windspeed - Operational | 72 km/h |
| Windspeed - Survival | 90 km/h |
| Humidity | 5 - 95% condensing (Antenna / RF) |
| PHYSICAL SPECIFICATIONS | |
| Number of cases | n/a |
| Weight | ≤140Kg (excl BUC) |
5 customers are viewing this product
Details
The WAYFARER 1.8m Driveaway is Norsat’s solution for reliable and easy-to-deploy mobile communications. The solid, low weight, and low height reflector mount deploys easily for fast and reliable satellite acquisition and tracking. Whether mounted on an emergency vehicular command center or a mobile broadcast van – count on Norsat’s WAYFARER™ drive-away terminals for drive-away broadband-level communications capability.
| KEY SPECIFICATIONS | |
| Product Family | WAYFARER - Driveaway |
| Band | Ku-Band |
| Reflector Diameter | 1.8 m |
| Acquisition & Tracking | Automatic |
| Transmit Frequency | Ku-Band: 13.75 - 14.50 GHz |
| Receive Frequency | Ku Band: 10.70 - 12.75 GHz |
| ANTENNA SPECIFICATIONS | |
| Polarization | Linear +/- 95 ° |
| Feed Configuration | Offset-feed |
| Cross-Polarization Isolation | ≥35 dB |
| Elevation Range | 10° - 90° |
| Azimuth Range | +/- 200° |
| Movement Overrides | Manual (Azimuth/Elevation) |
| Standard BUC Options | 8W, 20W, 40W, 80W |
| Standard LNB Options | 1000H or HS1000 |
| RF SPECIFICATIONS | |
| Movement Platform | Motorized Elevation over Azimuth |
| Tx Gain | 46.3+20log(f/14.25)dBi |
| Rx Gain | 45.0+20log(f/12.5)dBi |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | DC24 10A |
| INTERFACE SPECIFICATIONS | |
| Interfacility Link Cable | 10 m |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -30°C to +55°C (Antenna) |
| Weatherproofing | IP65 |
| Windspeed - Operational | 72 km/h |
| Windspeed - Survival | 90 km/h |
| Humidity | 5 - 95% condensing (Antenna / RF) |
| PHYSICAL SPECIFICATIONS | |
| Number of cases | n/a |
| Weight | ≤140Kg (excl BUC) |
