Norsat International Inc.

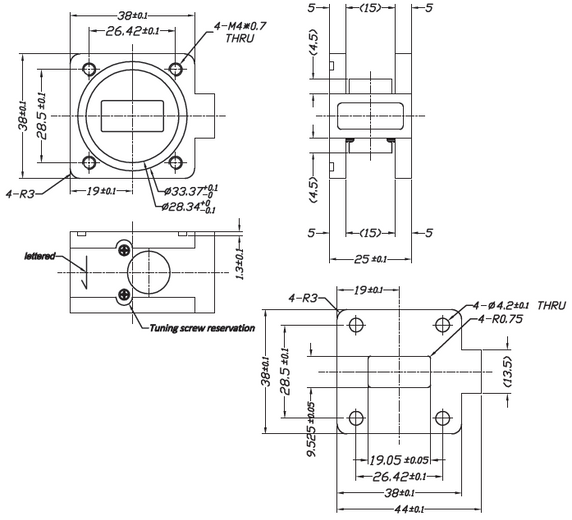

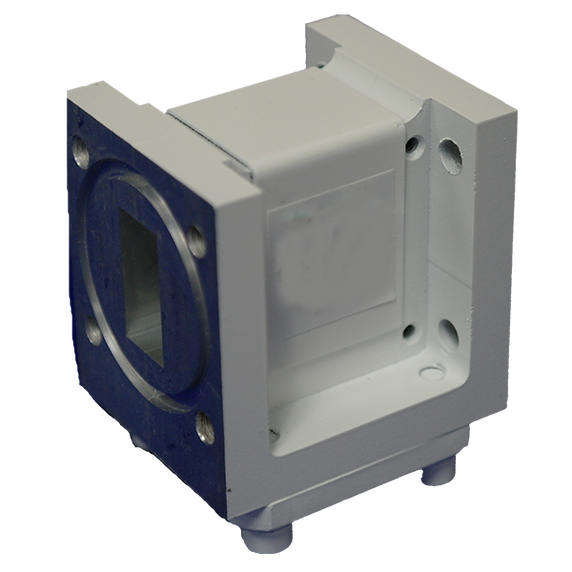

Norsat ISO-KU Waveguide Isolator Ku-Band
Product Code:
ISO-KU
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.11 KGS
$570.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 10.70 - 12.75 GHz |
| RF SPECIFICATIONS | |
| Insertion Loss | 0.4 dB max. |
| Output VSWR | 2.0 : 1 max. |
| PHYSICAL SPECIFICATIONS | |
| Product Weight | 0.113 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.113 kg |
| Aluminium COO | TW |
| Aluminium Total Value | $ 0.2825 |
| Country Of Origin | Made in Taiwan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 118 x 60 x 45 mm |
| Unit Package Height | 45 mm |
| Unit Package Length | 118 mm |
| Unit Package Weight | 0.113 kg |
| Unit Package Width | 60 mm |
| Warranty | 3 years |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 10.70 - 12.75 GHz |
| RF SPECIFICATIONS | |
| Insertion Loss | 0.4 dB max. |
| Output VSWR | 2.0 : 1 max. |
| PHYSICAL SPECIFICATIONS | |
| Product Weight | 0.113 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.113 kg |
| Aluminium COO | TW |
| Aluminium Total Value | $ 0.2825 |
| Country Of Origin | Made in Taiwan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 118 x 60 x 45 mm |
| Unit Package Height | 45 mm |
| Unit Package Length | 118 mm |
| Unit Package Weight | 0.113 kg |
| Unit Package Width | 60 mm |
| Warranty | 3 years |
