Norsat International Inc.

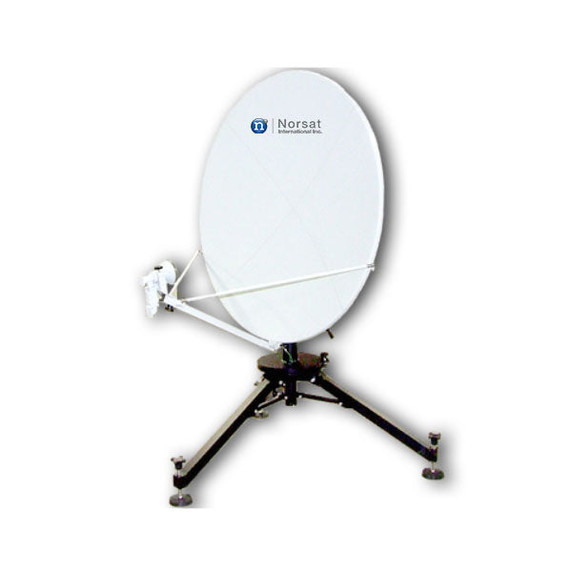

Norsat W120KU06 WAYFARER 1.2m Ku-Band Quick-Deploy Antenna
Product Code:
W120KU06
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
60.96
(cm)
Height:
120.00
(cm)
Depth:
120.00
(cm)
$25,600.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Flyaway |
| Band | Ku-band Linear |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Function | Transmit / Receive |
| Antenna Mount | Tri-pod Base Mount |
| Antenna Mount Type | Elevation over Azimuth |
| Antenna Structure | Single Offset |
| Azimuth Angle | 360° (Continuous Fine Adjustment) |
| Elevation Angle | 0° to 90° (Continuous Fine Adjustment) |
| Noise Temperature@ 10.7 Ghz Receive 10-Degree Elevation Unity | 68K |
| Noise Temperature@ 10.7 Ghz Receive 30-Degree Elevation Unity | 53K |
| RF SPECIFICATIONS | |
| Rx Frequency | 10.7 - 12.75 GHz |
| RX Gain | 41.8 dBi |
| RX Interface | WR75 |
| Tx Frequency | 13.75 - 14.5 GHz |
| TX Gain | 43.5 dBi |
| TX Interface | WR75 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Survival | -40°C to +140°C / -40°C to +60°C |
| Windspeed Operational | No Ballast/Anchors: 25 mph / 40 Kmh; with Ballast/Anchors: 45 mph / 72 kmh |
| Windspeed Survival | With Ballast/Anchors: 90 mph gusts / 145 Kmh Gusts |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 1200 mm |
| Product Length | 1200 mm |
| Product Width | 609.6 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in USA |
| ECCN Number | EAR99 |
| FCC ID | N/A |
| Harmonized System Code | 8529102120 |
| Number Of Packages | 1 |
| Unit Package Dimensions | 863.6 x 1041.4 x 520.7 mm |
| Unit Package Weight | 78.5 kg |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Antenna Category | Flyaway |
| Band | Ku-band Linear |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Function | Transmit / Receive |
| Antenna Mount | Tri-pod Base Mount |
| Antenna Mount Type | Elevation over Azimuth |
| Antenna Structure | Single Offset |
| Azimuth Angle | 360° (Continuous Fine Adjustment) |
| Elevation Angle | 0° to 90° (Continuous Fine Adjustment) |
| Noise Temperature@ 10.7 Ghz Receive 10-Degree Elevation Unity | 68K |
| Noise Temperature@ 10.7 Ghz Receive 30-Degree Elevation Unity | 53K |
| RF SPECIFICATIONS | |
| Rx Frequency | 10.7 - 12.75 GHz |
| RX Gain | 41.8 dBi |
| RX Interface | WR75 |
| Tx Frequency | 13.75 - 14.5 GHz |
| TX Gain | 43.5 dBi |
| TX Interface | WR75 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Survival | -40°C to +140°C / -40°C to +60°C |
| Windspeed Operational | No Ballast/Anchors: 25 mph / 40 Kmh; with Ballast/Anchors: 45 mph / 72 kmh |
| Windspeed Survival | With Ballast/Anchors: 90 mph gusts / 145 Kmh Gusts |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 1200 mm |
| Product Length | 1200 mm |
| Product Width | 609.6 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in USA |
| ECCN Number | EAR99 |
| FCC ID | N/A |
| Harmonized System Code | 8529102120 |
| Number Of Packages | 1 |
| Unit Package Dimensions | 863.6 x 1041.4 x 520.7 mm |
| Unit Package Weight | 78.5 kg |
| Warranty | 1 year |
