Norsat International Inc.
Norsat VSAT-KU120 Antenna System 1.2m Ku-Band Steel (TxRx Feed Included) - DEMO
$368.41
Zoom the image with the mouse
Norsat International Inc.

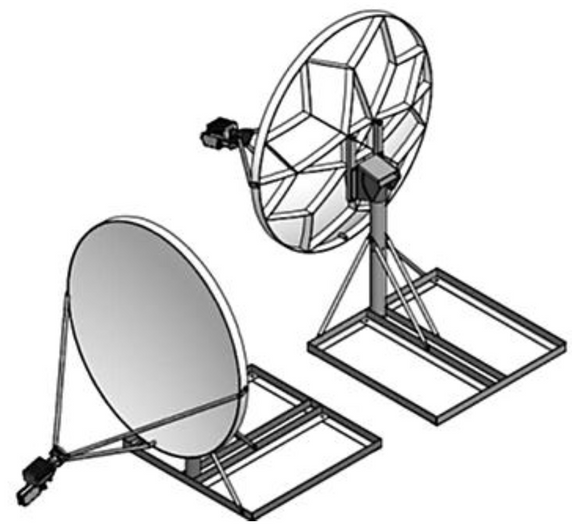

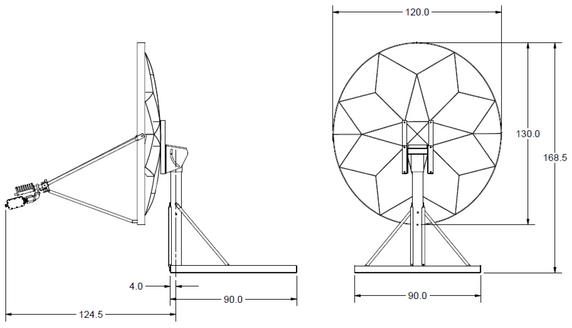

Norsat VSAT-KU120-LT 1.2m Ku-Band Fixed Antenna
Product Code:
VSAT-KU120-LT
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2 m Monoblock, SMC |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Azimuth Range | ±30° |
| Cross Polarization Isolation | Rx: 35 dB min. Tx: 35 dB min. |
| Elevation Range | 7°-84° |
| Polarization | Linear |
| Polarization Range | ±90° |
| Standard BUC Options | BUC-ELMTKU004-EF (Element Ku-Band 4W BUC) Sold Seperately |
| Standard LNB Options | 1208HUF (Quad-Band PLL 1000HU) Sold Separately |
| RF SPECIFICATIONS | |
| G/T | 20.2 dB/K @ Midband, 20° Elevation, with 1208HUF |
| Rx Frequency | 10.95 - 12.75 GHz |
| Rx Gain | 41.5 dBi (midband) |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 43 dBi (midband) |
| Tx Rx Isolation Port Isolation | 85 dB min. |
| Waveguide Flange | WR-75 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude Operational | 3000m |
| Altitude Storage | 4000m |
| Certification | MIL-STD-810G |
| Humidity | 95% at +40°C |
| Temperature Operational | -30° to +55°C |
| Temperature Storage | -40° to +70°C |
| Wind Load Operational | 80 km/h (with ballast) |
| Wind Load Survival | 200 km/h (with ballast) |
| PHYSICAL SPECIFICATIONS | |
| Color | White/Grey |
| Mount Type | Elevation Over Azimuth |
| Mounting | NPMM Footprint: 4’ x 4’ (1.22 m x 1.22 m) Mast size: 73mm (2-7/8") O.D. Includes Rubber Pads (NPMM may vary) |
| Packaging | Case 1, Dimensions (subject to change): 150 x 150 x 60 cm Case 1, Overall Weight (including case): 50 kg max. combined Case 1 and Case 2 Case 1, Contents (subject to change): Reflector, boom arm, boom arm struts Case 2, Dimensions (subject to change): 120 x 50 x 30 cm Case 2, Overall Weight (including case): 50 kg max. combined Case 1 and Case 2 Case 2, Contents (subject to change): Antenna superstructure, feed, OMT, TRF, RF NPMM, modem, Ethernet switch Material: Reusable cardboard boxes |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517700000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2 m Monoblock, SMC |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Azimuth Range | ±30° |
| Cross Polarization Isolation | Rx: 35 dB min. Tx: 35 dB min. |
| Elevation Range | 7°-84° |
| Polarization | Linear |
| Polarization Range | ±90° |
| Standard BUC Options | BUC-ELMTKU004-EF (Element Ku-Band 4W BUC) Sold Seperately |
| Standard LNB Options | 1208HUF (Quad-Band PLL 1000HU) Sold Separately |
| RF SPECIFICATIONS | |
| G/T | 20.2 dB/K @ Midband, 20° Elevation, with 1208HUF |
| Rx Frequency | 10.95 - 12.75 GHz |
| Rx Gain | 41.5 dBi (midband) |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 43 dBi (midband) |
| Tx Rx Isolation Port Isolation | 85 dB min. |
| Waveguide Flange | WR-75 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude Operational | 3000m |
| Altitude Storage | 4000m |
| Certification | MIL-STD-810G |
| Humidity | 95% at +40°C |
| Temperature Operational | -30° to +55°C |
| Temperature Storage | -40° to +70°C |
| Wind Load Operational | 80 km/h (with ballast) |
| Wind Load Survival | 200 km/h (with ballast) |
| PHYSICAL SPECIFICATIONS | |
| Color | White/Grey |
| Mount Type | Elevation Over Azimuth |
| Mounting | NPMM Footprint: 4’ x 4’ (1.22 m x 1.22 m) Mast size: 73mm (2-7/8") O.D. Includes Rubber Pads (NPMM may vary) |
| Packaging | Case 1, Dimensions (subject to change): 150 x 150 x 60 cm Case 1, Overall Weight (including case): 50 kg max. combined Case 1 and Case 2 Case 1, Contents (subject to change): Reflector, boom arm, boom arm struts Case 2, Dimensions (subject to change): 120 x 50 x 30 cm Case 2, Overall Weight (including case): 50 kg max. combined Case 1 and Case 2 Case 2, Contents (subject to change): Antenna superstructure, feed, OMT, TRF, RF NPMM, modem, Ethernet switch Material: Reusable cardboard boxes |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517700000 |
