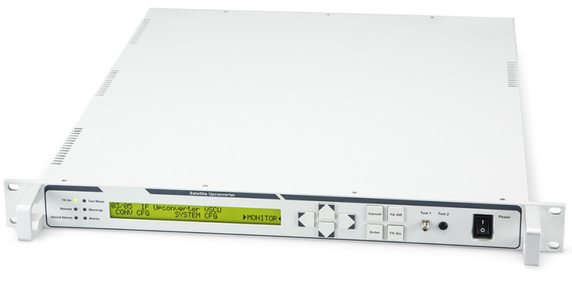

Norsat UPC-100006 Up Converter L Band to C Band

Name: Norsat UPC-100006 Up Converter L Band to C Band
Brand: Norsat International Inc.
SKU: UPC-100006
Availability: OutOfStock

No reviews yet

Product Code: UPC-100006

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

Width: 48.30 (cm)

Height: 4.40 (cm)

Depth: 50.50 (cm)

Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

KEY SPECIFICATIONS
Band	C-Band
Conversion Scheme	Dual up conversion, no frequency inversion
External Ref Freq	10 MHz, -3 to +3 dBm via BNC-Connector (50 Ω)
Fixed LO Frequency	2520 MHz
IF Frequency	2450 MHz
Input Frequency Band 1	70 ± 20 MHz
Internal Back-Up Reference	Frequency: 10 MHz sine-wave Level: -5 to +5 dBm Modes: auto/extern/intern Connector: BNC-Connector (50 Ω)
MW LO Frequency	8.075 - 8.875 GHz
Output Frequency Band 1	5.625 - 6.425 GHz
RF SPECIFICATIONS
AM/PM Conversion	0.1°/dB at Pout = 0 dBm
Attenuator Range	0 to 30 dB, stepped 0.1 dB
Conversion Gain	+40 dB ±1.0 dB at max. conversion gain
Fixed LO Test Output	2520 MHz: -6 dBm ±3 dB, SMA-Connector (50 Ω)
Frequency Resolution	100 Hz
Gain Flatness (Over ±20Mhz)	±0.25 dB
Gain Slope Equalizer	±0.0625 dB/MHz max., adjustable
Gain Stability	±0.25 dB/day at constant temperature
Gain Stability (Over Temperature)	±0.5 dB max., ±0.2 dB typ.
Group Delay	Linear: 0.03 ns/MHz max. Ripple: 0.01 ns/MHz² max. Parabolic: 1 ns peak to peak max.
Harmonics	< -40 dBc at max. conversion gain, Pout = 0 dBm
Image Rejection	> 80 dB
Input Damage Level	+10 dBm
Input Return Loss	> 23 dB
Internal Frequency Stability	±1 x 10^-7, -30°C to 60°C ±1 x 10^-8, -30°C to 60°C (after 30 min warm up) ±1 x 10^-9 per day (fixed temperature after 24 h warm up)
MW LO Test Output	8.075 - 8.875 GHz GHz: -7 dBm ±3 dB, SMA-Connector (50 Ω)
Noise Figure	< 12 dB at max. conversion gain
OIP3	> 25 dBm at max. conversion gain
Operational Input Level	-40 dBm at max. conversion gain
Output Muting	> 60 dB (by command or sense input or by alarm condition)
Output P1db	> 10 dBm at max. conversion gain
Output Return Loss	> 20 dB
Phase Noise 0.01Khz Offset Max	-60 dBc/Hz
Phase Noise 0.01Khz Offset Typ	-63 dBc/Hz
Phase Noise 0.1Khz Offset Max	-80 dBc/Hz
Phase Noise 0.1Khz Offset Typ	-83 dBc/Hz
Phase Noise 1Khz Offset Max	-90 dBc/Hz
Phase Noise 1Khz Offset Typ	-93 dBc/Hz
Phase Noise 10Khz Offset Max	-95 dBc/Hz
Phase Noise 10Khz Offset Typ	-98 dBc/Hz
Phase Noise 100Khz Offset Max	-97 dBc/Hz
Phase Noise 100Khz Offset Typ	-100 dBc/Hz
Phase Noise 1000Khz Offset Max	-107 dBc/Hz
Phase Noise 1000Khz Offset Typ	-110 dBc/Hz
RF Monitor	Signal level in ref. to output: -20 dB ±3 dB Connector: SMA-Connector (50 Ω)
Spurious	Signal Related: < -60 dBc (∆f < 2 MHz), < -70 dBc (∆f ≥ 2 MHz) at max. conversion gain, Pout = 0 dBm Signal Independent: < -70 dBm
ELECTRICAL SPECIFICATIONS
Fuse	2 x 2.0 A, time-lag fuse
Power Consumption	45 VA max. / 30 W max.
Power Requirements	100 - 240 VAC nom., 90 - 264 VAC max., 47 - 63 Hz
INTERFACE SPECIFICATIONS
Alarm	Two potential free contacts (DPDT), connector DSUB09 female
Input Connector	BNC-Connector (50 Ω)
M&C Interface	Protocol: SNMP Connection: UDP over Ethernet (10 or 100 Mbps, auto sensing), connector RJ-45 Protocol: HTTP (web browser interface) Connection: TCP/IP over Ethernet (10 or 100 Mbps, auto sensing), connector RJ-45 Protocol: Multipoint packet format commands Connection: RS232 or RS422/RS485 (configurable), connector DSUB09 female or TCP/IP over Ethernet (10 or 100 Mbps, auto sensing), connector RJ-45
Output Connector	SMA-Connector (50 Ω)
Power Connector	IEC C14
User Interface	LCD-Display 2 x 40 characters, 4 cursor keys, 4 function keys
ENVIRONMENTAL SPECIFICATIONS
Relative Humidity	< 95 % non condensing
Temperature Operational	0°C to +50°C
Temperature Storage	-30°C to +80°C
PHYSICAL SPECIFICATIONS
Product Height	44 mm
Product Length	505 mm
Product Weight	Approx. 9 kg
Product Width	483 mm
ADDITIONAL INFORMATION
Country Of Origin	Made in Germany
ECCN Number	EAR99
Ex Works	Richmond, BC, Canada
Harmonized System Code	8517690000
