Norsat International Inc.
Norsat Universal LNB Controller ULC-2N-75-LLC
Product Code:
ULC-2N-75-LLC
Availability:
YES
Weight:
1.21 KGS
$1,500.00

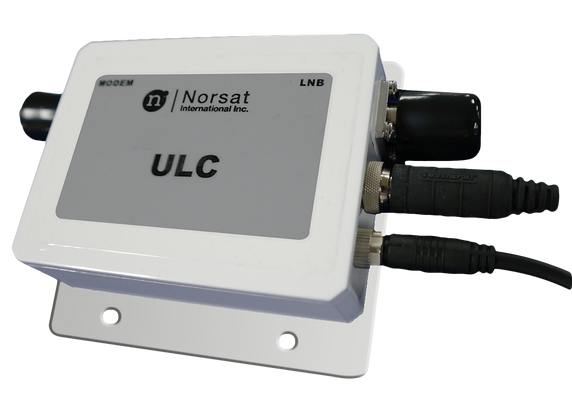

Norsat’s Universal LNB Controller is used as an LNB control unit for multi-band LNBs. Universal power supply and mounting plate is included.
| KEY SPECIFICATIONS | |
| Product Family | Universal LNB Controller |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 23 - 25 VDC |
| Power Consumption @ muted | 450 mA/24V (no ref); 600 mA/24V (10MHz ref) |
| INTERFACE SPECIFICATIONS | |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -30 to +60°C |
5 customers are viewing this product
Details
Norsat’s Universal LNB Controller is used as an LNB control unit for multi-band LNBs. Universal power supply and mounting plate is included.
| KEY SPECIFICATIONS | |
| Product Family | Universal LNB Controller |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 23 - 25 VDC |
| Power Consumption @ muted | 450 mA/24V (no ref); 600 mA/24V (10MHz ref) |
| INTERFACE SPECIFICATIONS | |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -30 to +60°C |
