Norsat International Inc.

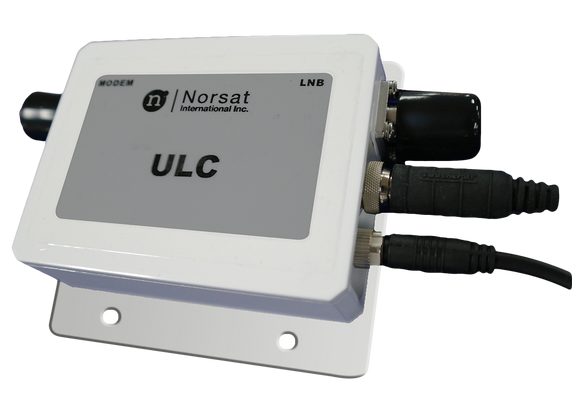

Norsat ULC-2N-50 Universal LNB Controller
Product Code:

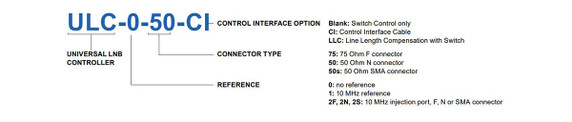

ULC-2N-50
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.66 KGS
Width:
9.50
(cm)
Height:
3.00
(cm)
Depth:
13.00
(cm)
$1,700.00
| KEY SPECIFICATIONS | |
| CI Option Logic Levels | L: 0 - 0.8 V; H: 2.5 - 7 V (20mA) |
| Reference Signal | 10MHz injection port |
| Tone Amplitude | 0.55 ~ 0.9 vpp |
| Tone Frequency | 20 ~ 24 kHz |
| RF SPECIFICATIONS | |
| Output VSWR | 2.0 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 600 mA/24 V |
| Output Current | 500 mA max. |
| Output Voltage 1 | 12.5 ~ 13.5 VDC |
| Output Voltage 2 | 17.3 ~ 18.7 VDC |

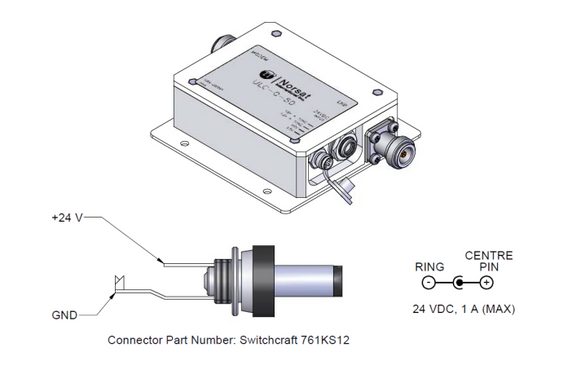

| Power Requirements | +23 to +25 V DC |
| INTERFACE SPECIFICATIONS | |
| Connector | N-Connector |

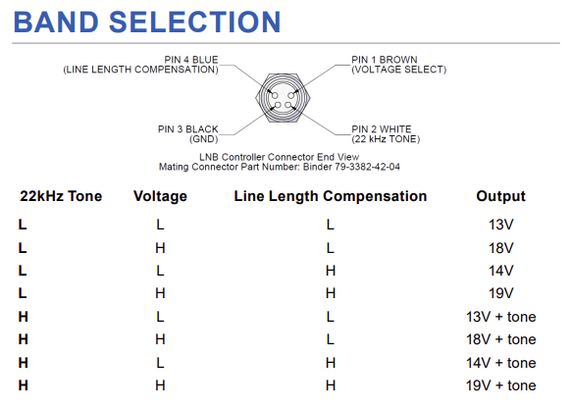

| Control Interface | Switch, Cable, Line Length Compensation with switch |
| RF Input Connector | 50 Ohm N Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 66 |
| Temperature Operational | -30°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 30 mm |
| Product Length | 130 mm |
| Product Weight | 0.66 kg |
| Product Width | 95 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.25 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 0.625 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
5 customers are viewing this product
