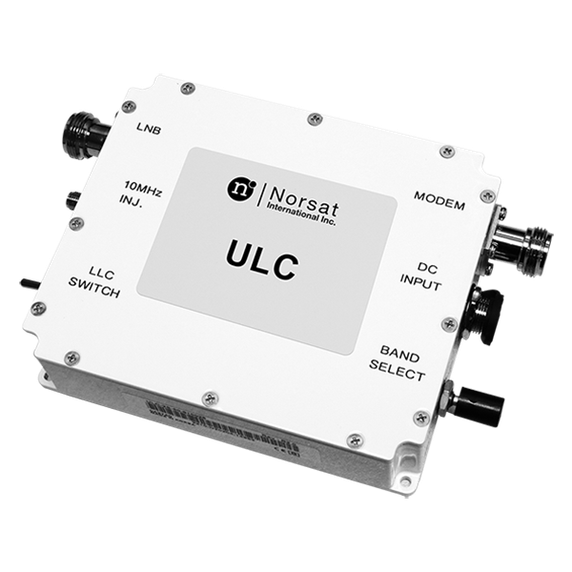

Band Selection
Band | Voltage | Tone |
Band 1 | 13VDC | - |
Band 2 | 13VDC | 22 kHz |
Band 3 | 18VDC | - |
Band 4 | 18VDC | 22 kHz |
Band 5 | 22VDC | - |
Band 6 | 22VDC | 22 kHz |
Input Voltage Range 23 ~ 25 VDC (Power Supply Included)
Tone Frequency 20 ~ 24 kHz
Tone Amplitude 0.55 – 0.90 Vpp
Required Current 500 mA max.
Operating Temperature -40ºC to +60ºC

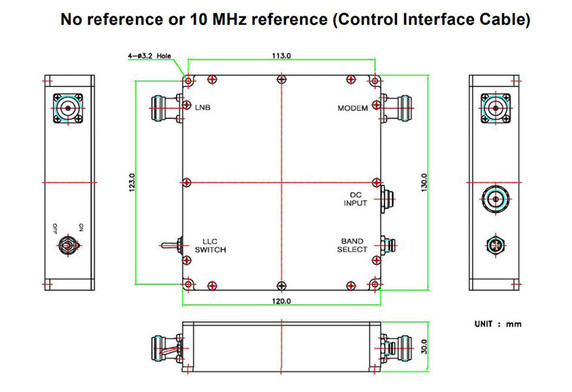

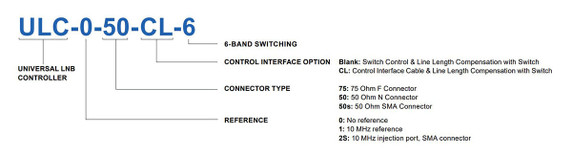

KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
input voltage | 23 ~ 25 VDC (Power Supply Included) |
product family | ULC Series |
reference signal | No Reference |
required current | 500 mA max. |
INTERFACE SPECIFICATIONS | |
---|---|
RF output connector | SMA-50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
Band Selection
Band | Voltage | Tone |
Band 1 | 13VDC | - |
Band 2 | 13VDC | 22 kHz |
Band 3 | 18VDC | - |
Band 4 | 18VDC | 22 kHz |
Band 5 | 22VDC | - |
Band 6 | 22VDC | 22 kHz |
Input Voltage Range 23 ~ 25 VDC (Power Supply Included)
Tone Frequency 20 ~ 24 kHz
Tone Amplitude 0.55 – 0.90 Vpp
Required Current 500 mA max.
Operating Temperature -40ºC to +60ºC

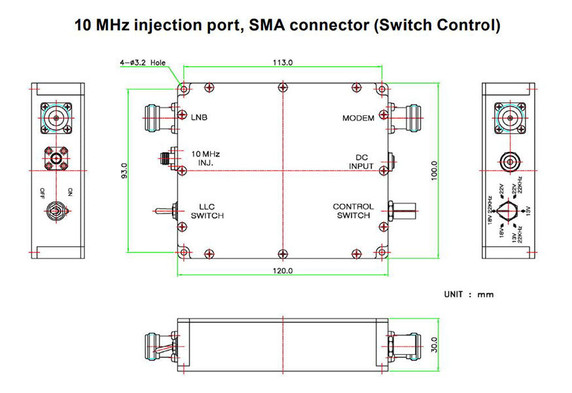

KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
input voltage | 23 ~ 25 VDC (Power Supply Included) |
product family | ULC Series |
reference signal | No Reference |
required current | 500 mA max. |
INTERFACE SPECIFICATIONS | |
---|---|
RF output connector | SMA-50 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40 to +60°C |
