Norsat International Inc.

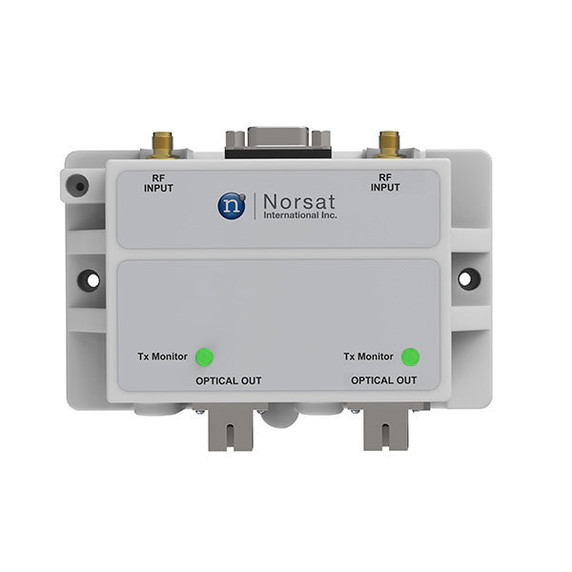

Norsat TX203M5500NSA0 RF over Fiber 3GHz - Dual Transmitter 50um Multimode
Product Code:
TX203M5500NSA0
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.32 KGS
Width:
12.80
(cm)
Height:
3.20
(cm)
Depth:
7.80
(cm)
$5,810.00
Dual fiber transmitter modules require a power supply - sold separately.
Optical connectors are SC/PC. Interface to 50 µm OM2, OM3, OM4.
| KEY SPECIFICATIONS | |
| Form Factor | Indoor Flange Mount |
| Frequency Band | 30 - 3000 MHz |
| Function | Dual Transmitter |
| RF SPECIFICATIONS | |
| Frequency Response Flatness Max | 4 dBpp |
| Frequency Response Flatness Typ | 3 dBpp |
| IIP3 | > +28 dBm |
| Input Impedance | 50 Ohms |
| Input VSWR Typ | < 2.0 : 1 |
| Lower Rolloff | 30 MHz |
| Noise Figure | 41 dB (typical) |
| RF Gain | -2 dB < G < +2 dB |
| RF Input Damage Level | +18 dBm (60 mW) |
| SFDR | 110 dB/Hz2/3 (typical) |
| ELECTRICAL SPECIFICATIONS | |
| Supply Current | < 160 mA |
| Supply Voltage | 9V < Vcc < 30V |
| INTERFACE SPECIFICATIONS | |
| Optical Connectors | SC/PC bulkheads |
| RF Connectors | 50 Ohm SMA(f) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Case Temperature | -20°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 32 mm |
| Product Length | 78 mm |
| Product Weight | 0.315 kg |
| Product Width | 128 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in United States of America |
| ECCN Number | 5A991 |
| Harmonized System Code | 8517620030 |
| Unit Package Dimensions | 180 x 180 x 180 mm |
| Unit Package Weight | 0.45 kg |
| Warranty | 1 year |
