Norsat International Inc.

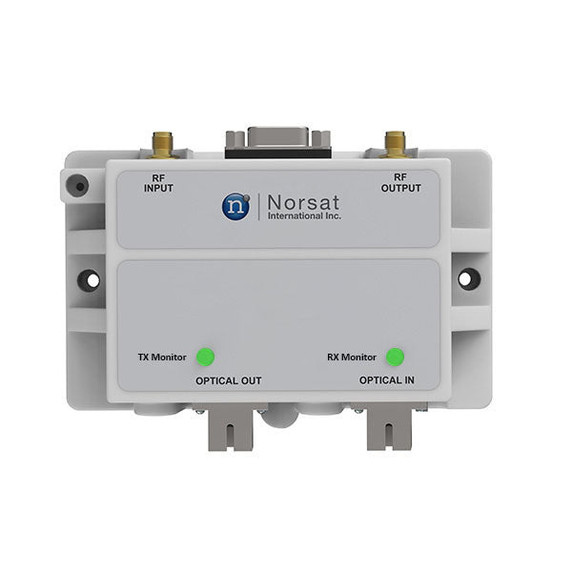

Norsat TRX03M3100SSA1 RF over Fiber 3GHz - Transceiver Single Mode 1310nm

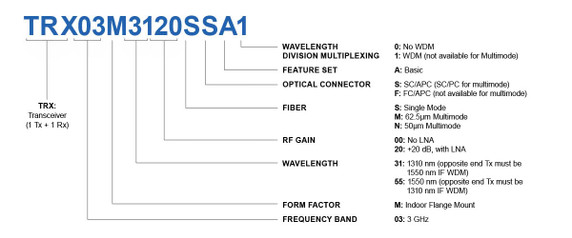

Product Code:
TRX03M3100SSA1
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.32 KGS
Width:
12.80
(cm)
Height:
3.20
(cm)
Depth:
7.80
(cm)
$3,540.00
Fiber transceiver modules require a power supply - sold separately.
Transmitter wavelength is 1310 nm, receiver wavelength may be any.
Fiber receiver path RF gain, NF, IIP3, SFDR depend on transmitter at other end of link (LNA, no LNA).
| KEY SPECIFICATIONS | |
| Form Factor | Indoor Flange Mount |
| Frequency Band | 30 - 3000 MHz |
| Function | Transceiver (Tx+Rx) |
| RF SPECIFICATIONS | |
| Frequency Response Flatness Max | 4 dBpp |
| Frequency Response Flatness Typ | 3 dBpp |
| IIP3 | > +28 dBm (fiber transmitter path) |
| Input Impedance | 50 Ohms |
| Input VSWR Typ | < 2.0 : 1 |
| Lower Rolloff | 30 MHz |
| Noise Figure | 41 dB (typical) (fiber transmitter path) |
| Output Impedance | 50 Ohms |
| Output VSWR Typ | < 2.0 : 1 |
| RF Gain | -2 dB < G < +2 dB (fiber transmitter path) |
| RF Input Damage Level | +18 dBm (60 mW) |
| SFDR | 110 dB/Hz2/3 (typical) (fiber transmitter path) |
| ELECTRICAL SPECIFICATIONS | |
| Supply Current | < 320 mA |
| Supply Voltage | 9V < Vcc < 30V |
| INTERFACE SPECIFICATIONS | |
| Optical Connectors | SC/APC bulkhead |
| RF Connectors | 50 Ohm SMA(f) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Case Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |

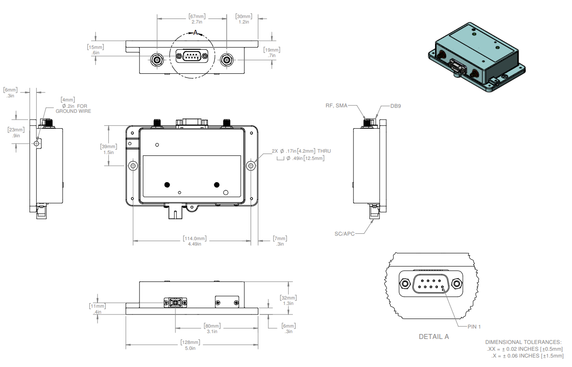

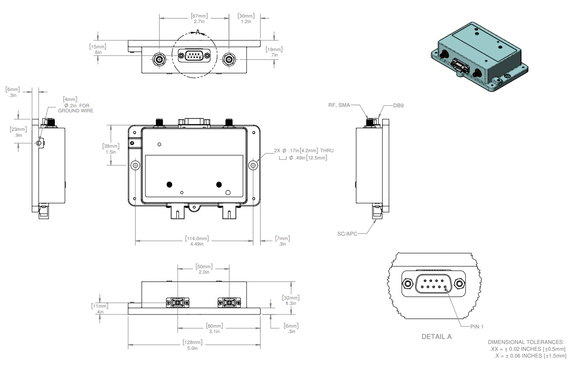

| PHYSICAL SPECIFICATIONS | |
| Product Height | 32 mm |
| Product Length | 78 mm |
| Product Weight | 0.315 kg |
| Product Width | 128 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in United States of America |
| ECCN Number | 5A991 |
| Harmonized System Code | 8517620030 |
| Unit Package Dimensions | 180 x 180 x 180 mm |
| Unit Package Weight | 0.45 kg |
| Warranty | 1 year |
