Norsat International Inc.

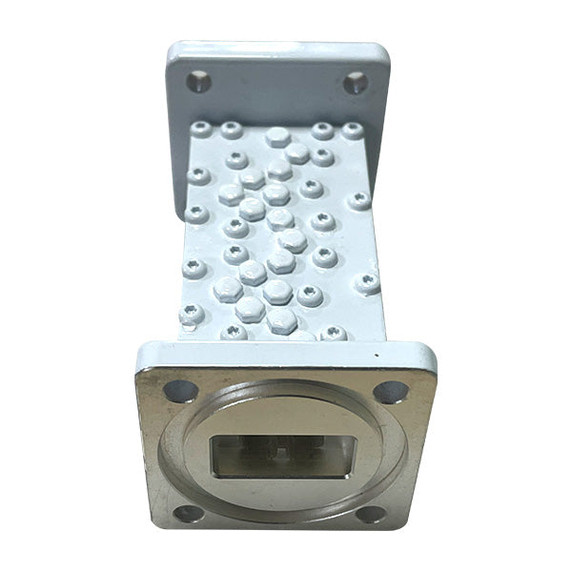

Norsat TRF-X Transmit Reject Filter for LNB Redundancy Switch
Product Code:
TRF-X
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.45 KGS
Width:
4.78
(cm)
Height:
4.78
(cm)
Depth:
9.90
(cm)
$1,470.17
| KEY SPECIFICATIONS | |
| Center Frequency | 7.5 GHz |
| Frequency Range | 7.25 – 7.75 GHz |
| Out-Of-Band Rejection | ≥ 80 dB @8.0 - 12.0 GHz |
| RF SPECIFICATIONS | |
| Insertion Loss | 0.5 dB max., 0.25 dB typ. |
| VSWR | 1.25 : 1 max |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
| Connector | WR112 (Waveguide), CPR112G (Flange) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa - 106 KPa |
| IP Rating | IP 65 |
| Relative Humidity | 5% - 95% |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40°C to +85°C |

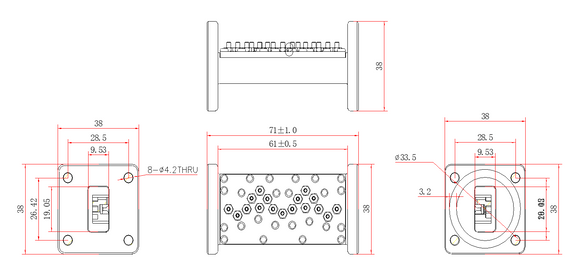

| PHYSICAL SPECIFICATIONS | |
| Product Height | 47.8 mm |
| Product Length | 99 mm |
| Product Weight | 0.45 kg |
| Product Width | 47.8 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 217 mm x 122 mm x 100 mm |
| Unit Package Height | 100 mm |
| Unit Package Length | 217 mm |
| Unit Package Weight | 0.3 kg |
| Unit Package Width | 122 mm |
| Warranty | 3 years |
